Not everyone has the desk space– never mind the finances – to afford the luxury of a dual-monitor setup. Adding a second display can, however, revolutionize the way you use your PC.
Deskreen is a free Linux application that provides a clever workaround to this problem, one that makes it possible for you to view multiple windows at once across additional displays without spending anything. Simply put, it enables you to convert other devices, including phones, tablets, laptops, and even smart TVs, into wireless, secondary displays for your computing tasks.
Deskreen transmits your display – both X and Wayland windowing systems are supported – to your mobile devices over your local (wired or wireless) network using the WebRTC protocol. Most of the heavy lifting is done by your PC, so even older phones and tablets should work with it. The key requirement for your mobile is that it has a web browser that supports WebRTC – on Android, that means running Chrome 28 or later, or Firefox 22 or later. If you’re hoping to use an old iPhone or iPad, it’ll need to run iOS 11 or later.
For This Project You Will Need
- Computer running Linux
- Tablet or mobile device with a recent browser and barcode scanner app.
- 5-GHz Wi-Fi or Ethernet
Before we can use Deskreen, we need to download and configure a BASH script that will configure a virtual display. Please note that this script is compatible with the X Window system only. Newer Ubuntu releases ship with Wayland set as default. To change this click on the cog / Settings icon and select “Ubuntu”.
1. Open a terminal and download the Git repository for the Virtual Display Linux script.
git clone https://github.com/dianariyanto/virtual-display-linux.git
2. Change directory to the downloaded repository.
cd virtual-display-linux3. Set the vdl-monitor to be an executable.
sudo chmod +x vdl-monitor
4. Open vdl-monitor.conf in nano.
nano vdl-monitor.conf
5. Set the resolution for screen1 to match that of the device that you wish to use. We used an old Android tablet with a 1080p resolution. Press CTRL + O, then press Enter and finally CTRL X to save and exit the file.
6. Run the vdl-monitor script. You will be prompted to reboot, do so and when back to the desktop, open a terminal window.
./vdl-monitor
7. Run vdl-monitor to start the virtual display. You can check that you now have two displays by opening the Screen Display application found in the Control Panel.
We now have a virtual 1080p monitor ready for use. To use it we need to download and configure Deskreen.
To Install Deskreen
1. Download the app image version of Deskreen from www.deskreen.com
2. Go to the Downloaded file, right click on the file and select Properties. Next to Execute tick “Allow executing file as a program”. This will make the file executable.
3. Double click on Deskreen app to launch the application. When prompted, confirm your language.
4. Deskreen presents a screen with a QR code and URL. Using your tablet / device scan the QR code with the barcode scanner or type the URL into the browser.
5. On your computer a prompt will appear asking us to confirm the connection. Accept the connection.
6. Deskreen can share an entire screen or an application window. In this case we wish to share the entire screen. Click on Entire Screen to share.
7. Two screens will be offered. Screen 2 is the virtual screen. Click on Screen 2 to share.
8. Confirm that you wish to share Screen 2.

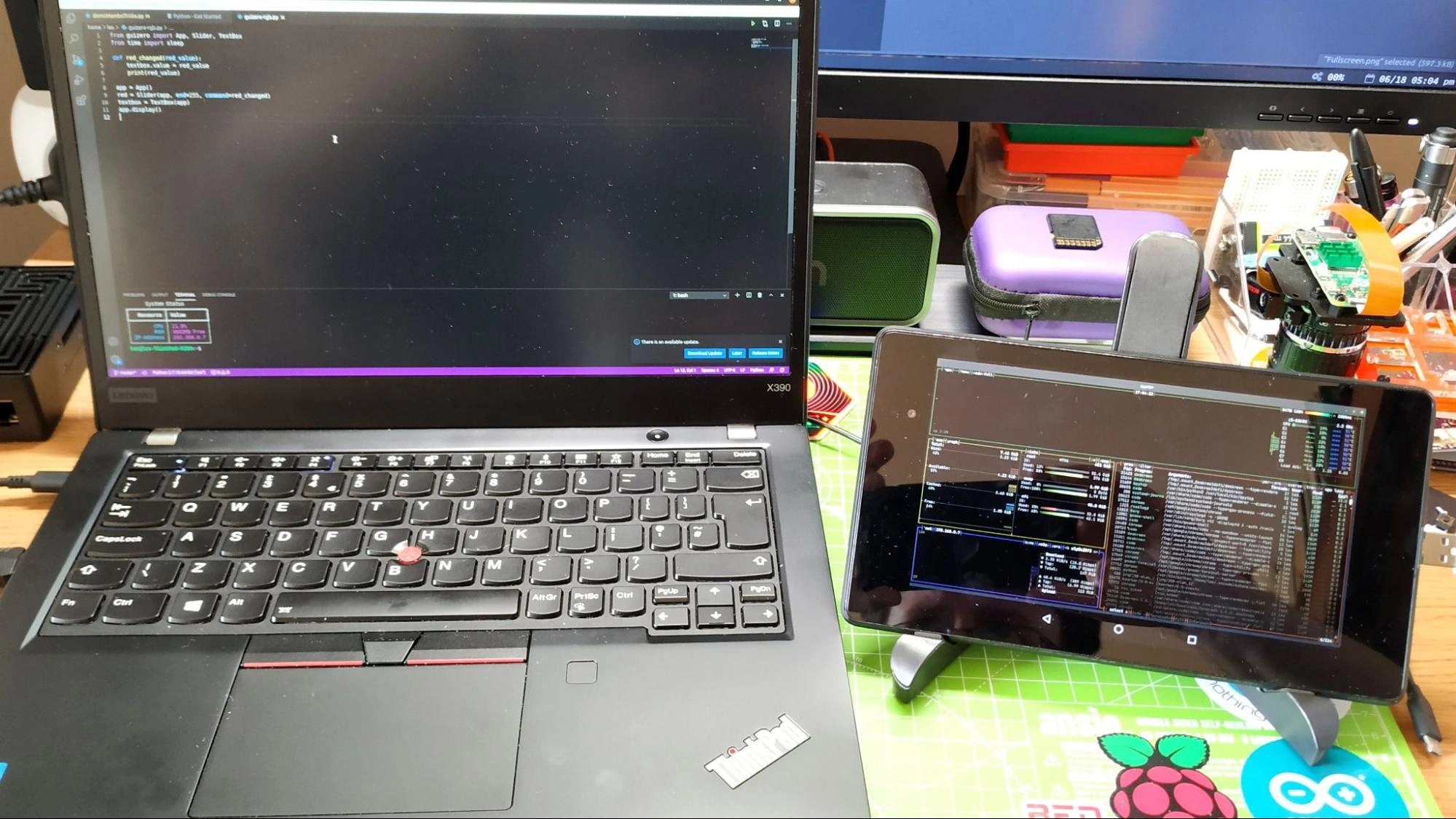

9. The browser on your tablet will now show Screen 2. Click on the full screen icon to get the maximum screen real estate.
Deskreen works well but there is a caveat. You will need 5-GHz Wi-Fi or an Ethernet connection to get the best from this setup. Slow connections will cause lag between your displays.
