TP-Link Archer BE770 Wi-Fi 7 router review: Prioritizing wireless performance over wired connectivity

TP-Link offers a dizzying array of Wi-Fi 7 routers, ranging from entry-level to mid-range to high-end gaming routers, with mesh and travel options sprinkled in between. One of the newer entries from the company is the Archer BE770, a mainstream tri-band Wi-Fi 7 router with an imposing design and a wide range of ports.

While the Archer BE770 isn’t part of TP-Link’s Deco family of mesh routers, it does support the company's EasyMesh capabilities. EasyMesh allows you to link up compatible (and dissimilar) TP-Link networking devices to form a mesh network. TP-Link provides this functionality in a router priced just under $400.

Design of the TP-Link Archer BE770 Router

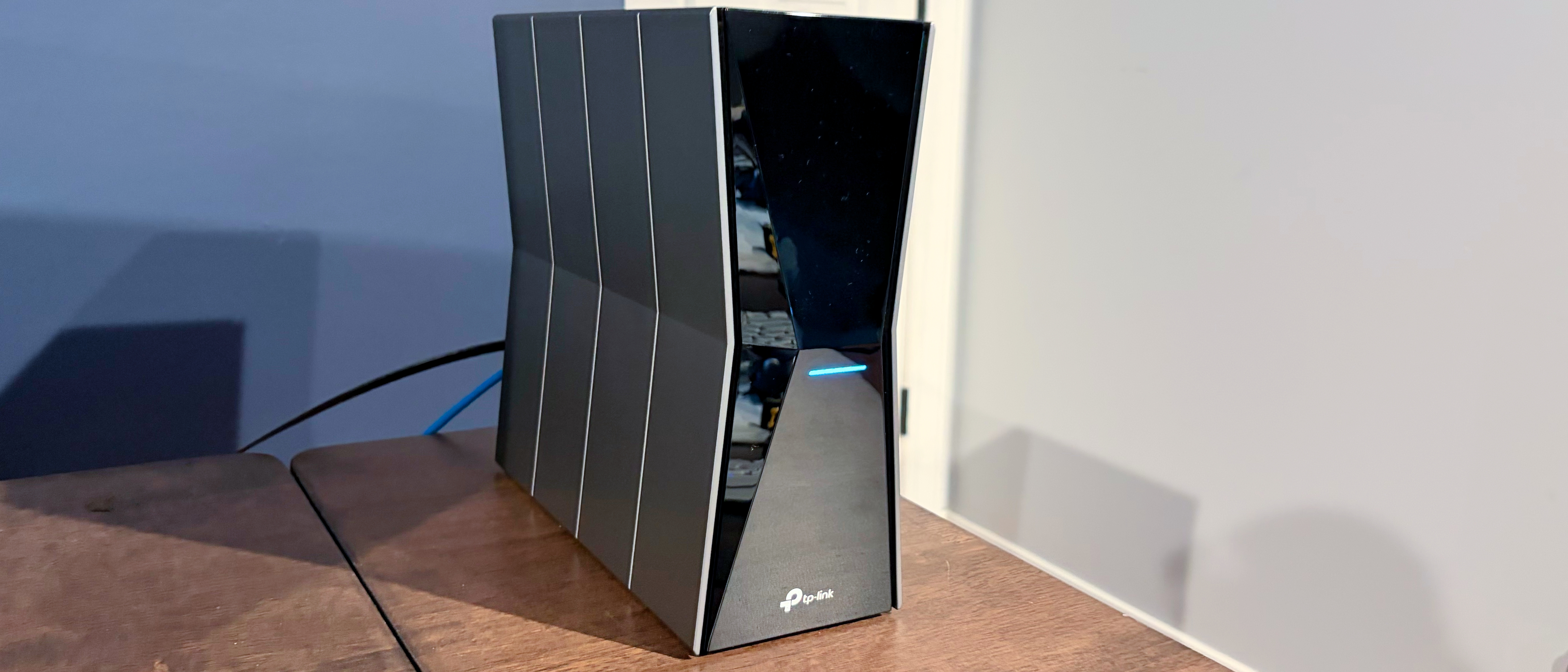

When the shipping box for our Archer BE770 arrived on my doorstep, I was taken aback by how large it was. This feeling continued when I opened it to reveal the router's retail box, which was equally large. Opening that box allowed me to lay eyes on the Archer BE770, which seems almost comically large compared to most other routers on the market. It’s not just the unit's height that’s imposing, but also its depth – it commands a large footprint on your desk or bookshelf, measuring 4.1 x 11.7 x 10.4 inches (W x D x H). It also looks like a mini desktop computer sitting on your desk.

Latest Videos From

Image 1 of 2

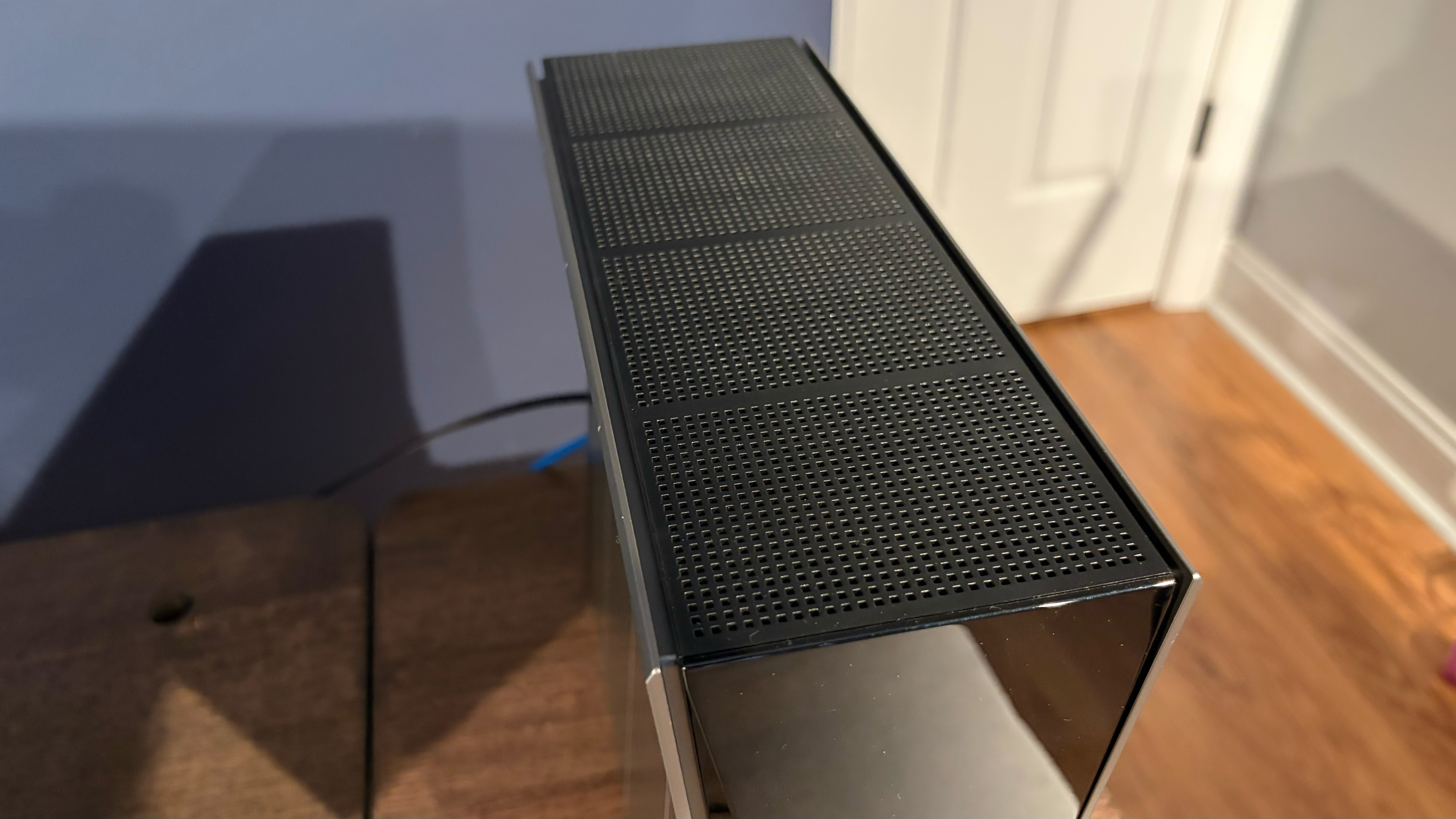

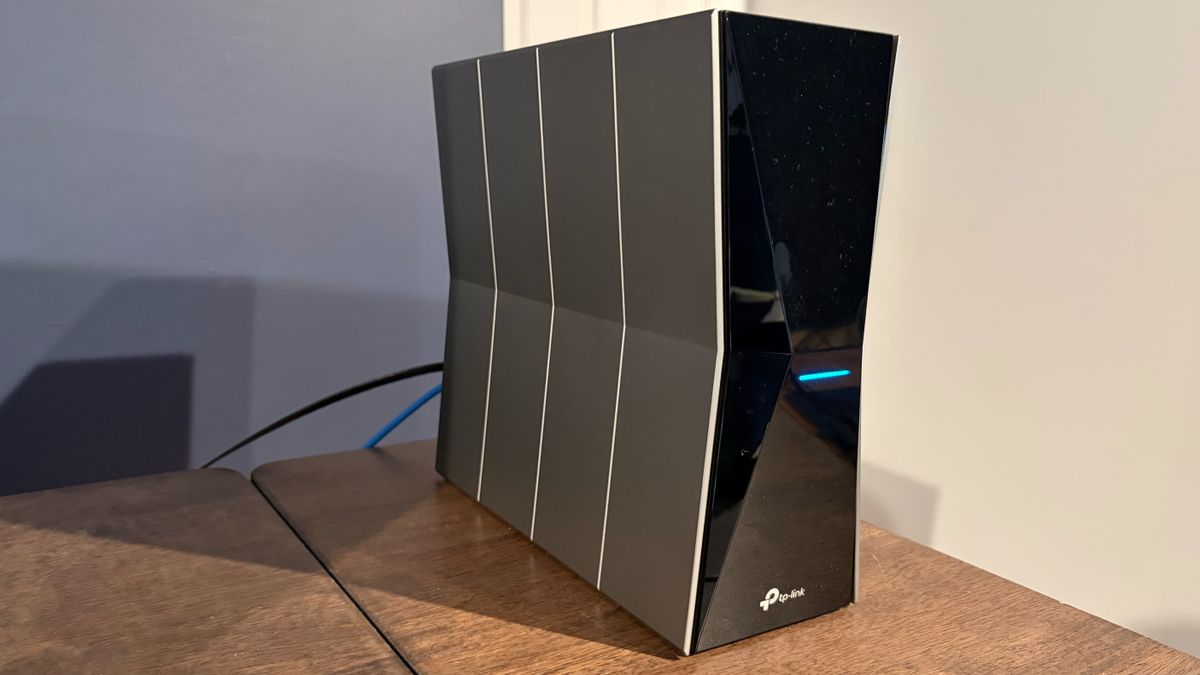

That said, the Archer BE770's design is attractive, with an hourglass profile when viewed head-on. The fascia is finished in a shiny black plastic, with a narrow horizontal status LED mounted about halfway up; the TP-Link logo is printed near the bottom of the fascia. The sides of the router are finished in silver plastic, while the top is finished in matte black plastic with plenty of holes for ventilation.

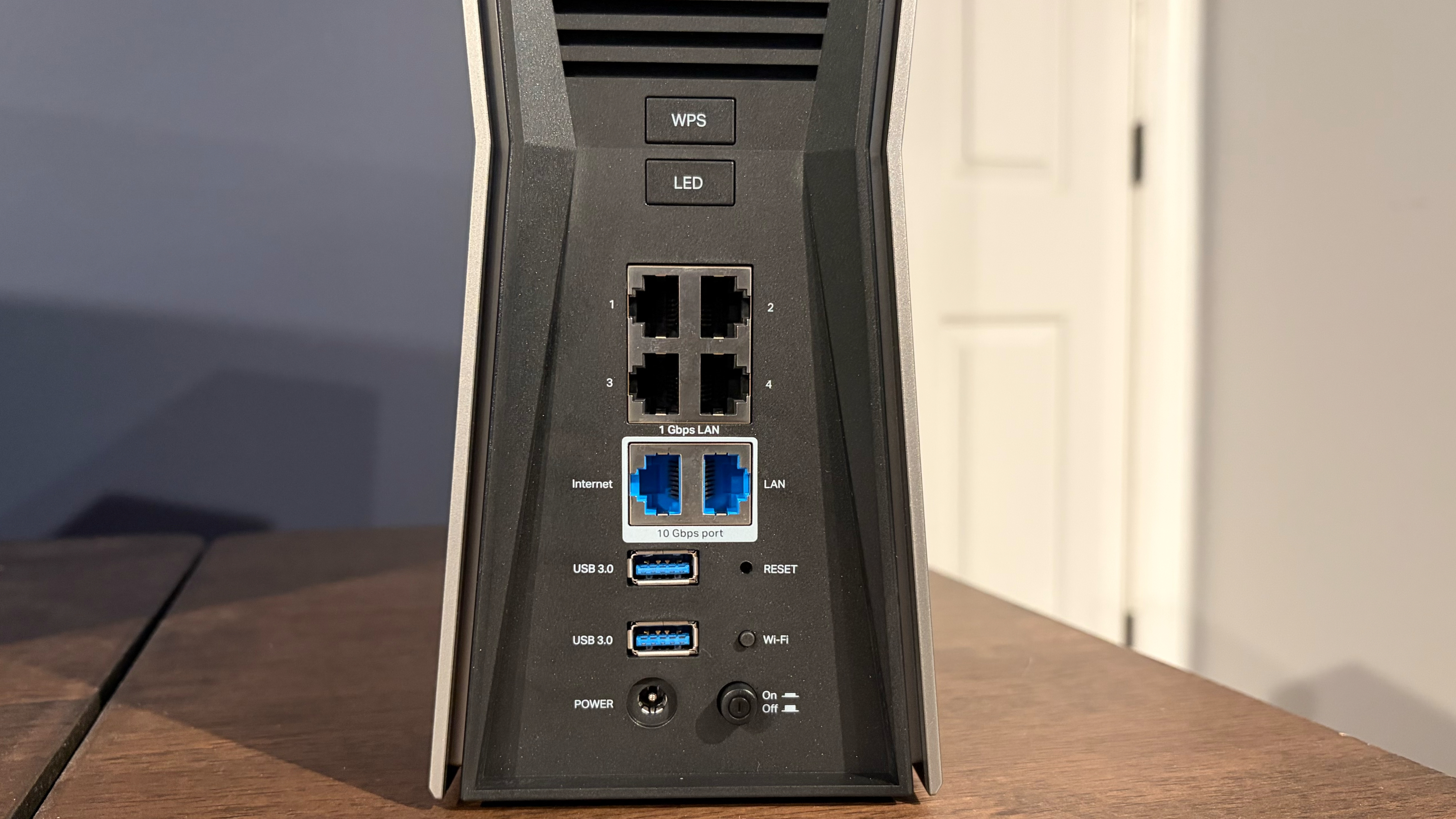

All of the Archer BE770’s various ports are found on the back of the device. There you’ll find four GbE ports and two 10 GbE ports (one of which can be used for WAN). While I applaud the inclusion of the two 10 GbE ports, I’m disappointed that the other four LAN ports are limited to 1 Gbps. With a street price of $400, 2.5 GbE should be the norm here. (Or at least make two of the four ports 2.5 GbE.)

On the plus side, TP-Link provides two USB 3.0 ports for network storage, whereas most routers only offer one. Other items of note on the back include dedicated buttons for enabling Wi-Fi Protected Setup (WPS) and turning off the front LED. There’s also a physical power button, a Wi-Fi disable button, and a pinhole button for resetting the router.

TP-Link Archer BE770 Router Specifications

Setting up the TP-Link Archer BE770 Router Software

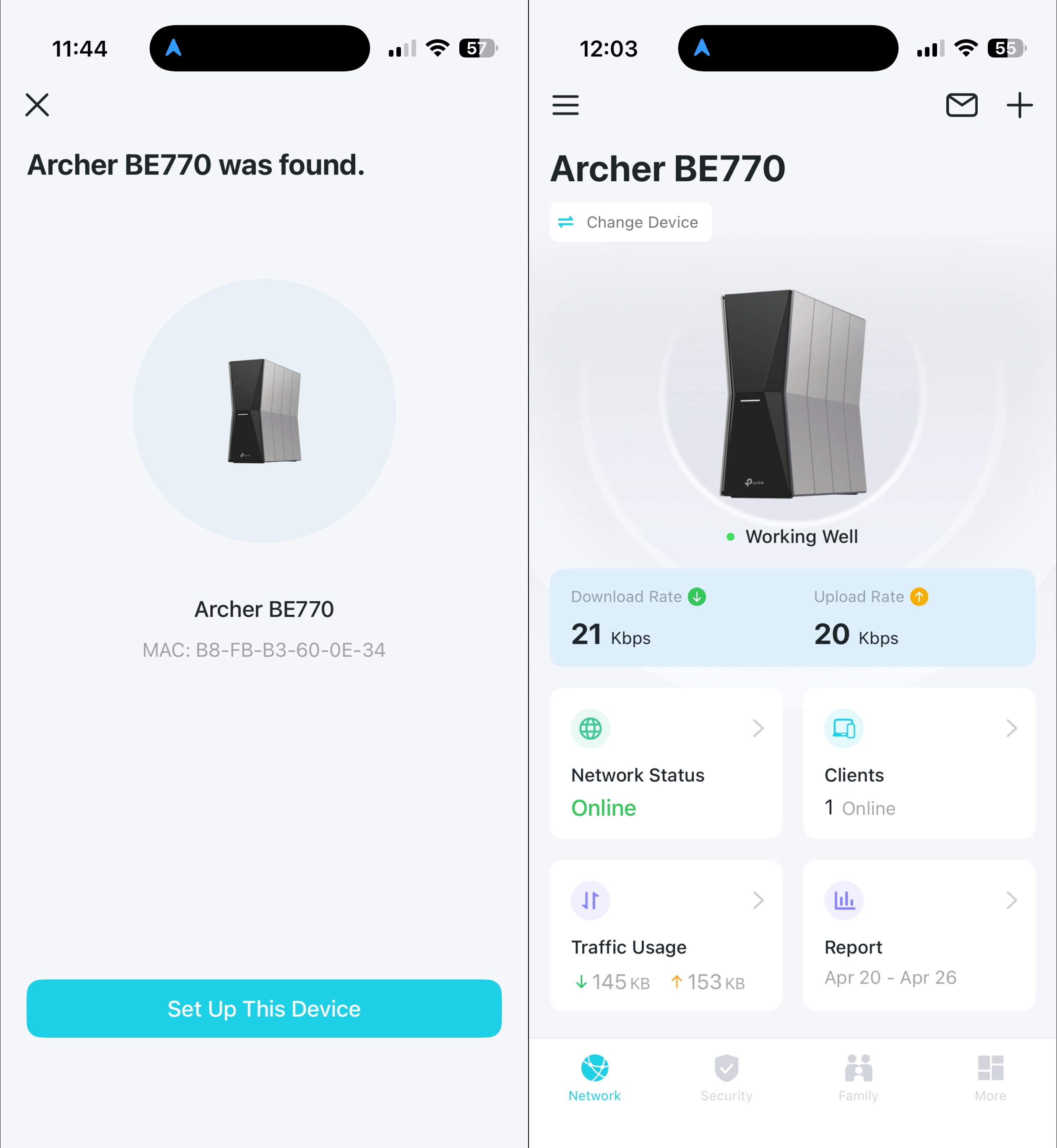

The initial setup of the Archer BE770 can be completed using the TP-Link Tether smartphone app or a web browser to access the router’s GUI. My personal preference is to use a router’s smartphone app (when possible) for setup, as it’s usually fast and simple. That was definitely the case with the Archer BE770, as I used the Tether app to scan the QR code on the bottom of the router. Within seconds, the router was discovered and the configuration process began.

I was asked to create an administrator password to log in to the router, and then to provide an SSID for the 6 GHz band and a separate SSID for the combined 2.4 GHz and 5 GHz bands.

Towards the end of the setup process, a firmware update was available for the router, which I applied. The router then rebooted, and the network was fully operational in roughly 6 minutes from start to finish.

TP-Link Archer BE770 Router Software

After setting up the Archer BE770 on my smartphone, I switched to my desktop to check out the router's GUI. The Archer BE770 uses a no-frills desktop GUI with a turquoise, gray, and white color scheme. This is the default look for Archer routers, while the TP-Link’s gaming router uses the same interface with a black theme.

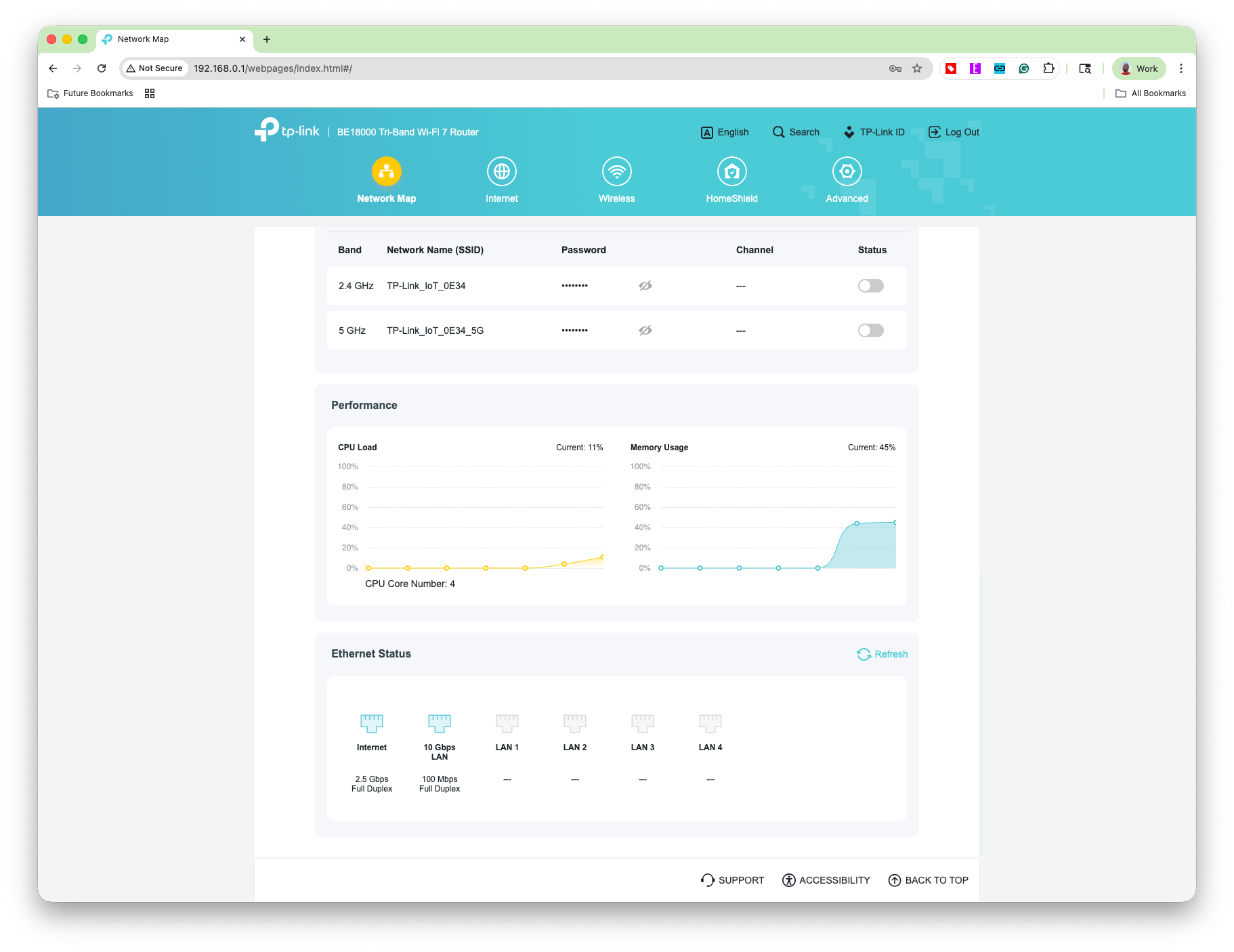

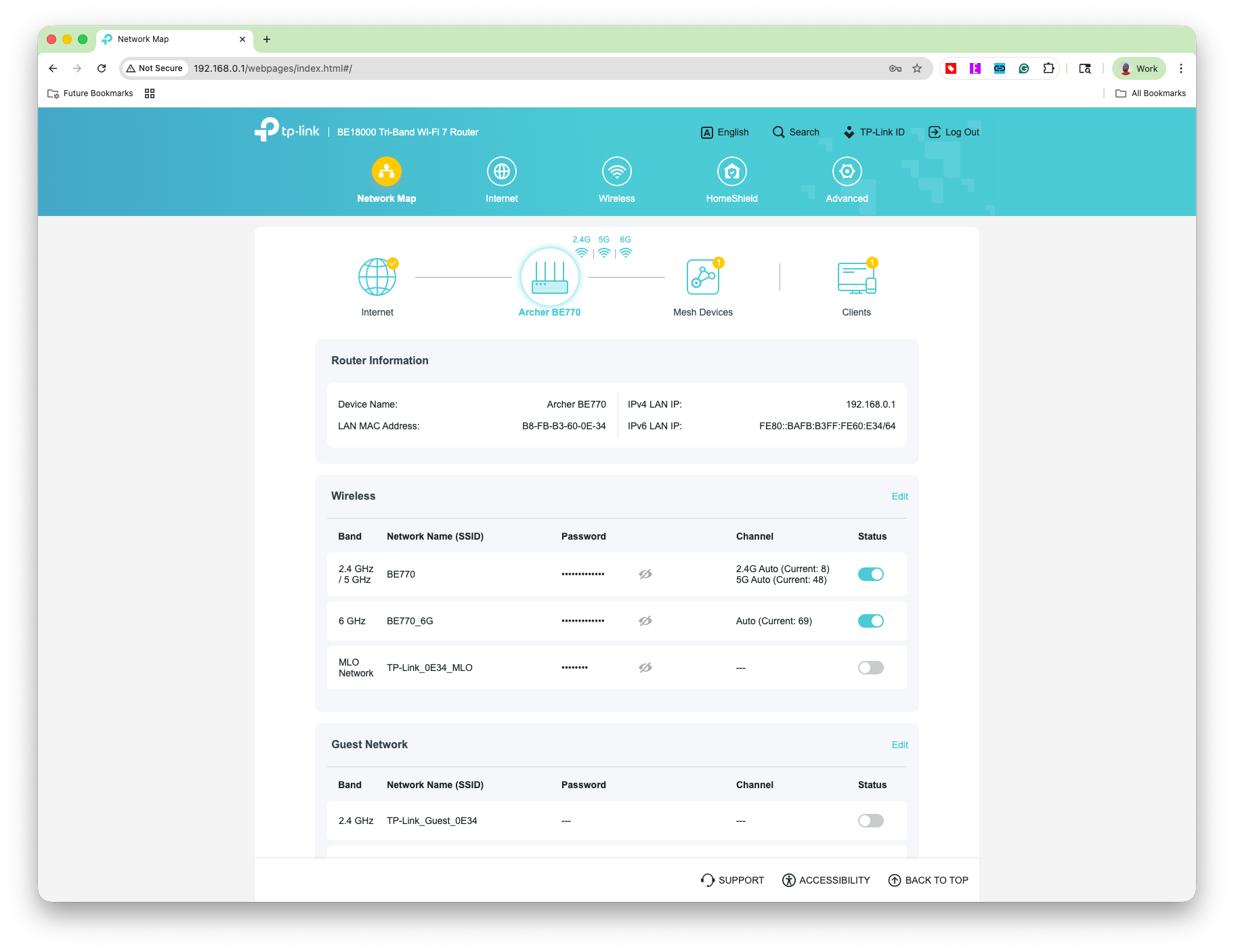

There are five tabs across the top of the GUI: Network Map, Internet, Wireless, HomeShield, and Advanced. Network Map displays pertinent information like your current connection type, internet IP address, and your router's uptime. You’ll also see an overview of the currently enabled SSIDs, CPU/memory loads, and a visual readout of active WAN/LAN ports.

Image 1 of 7

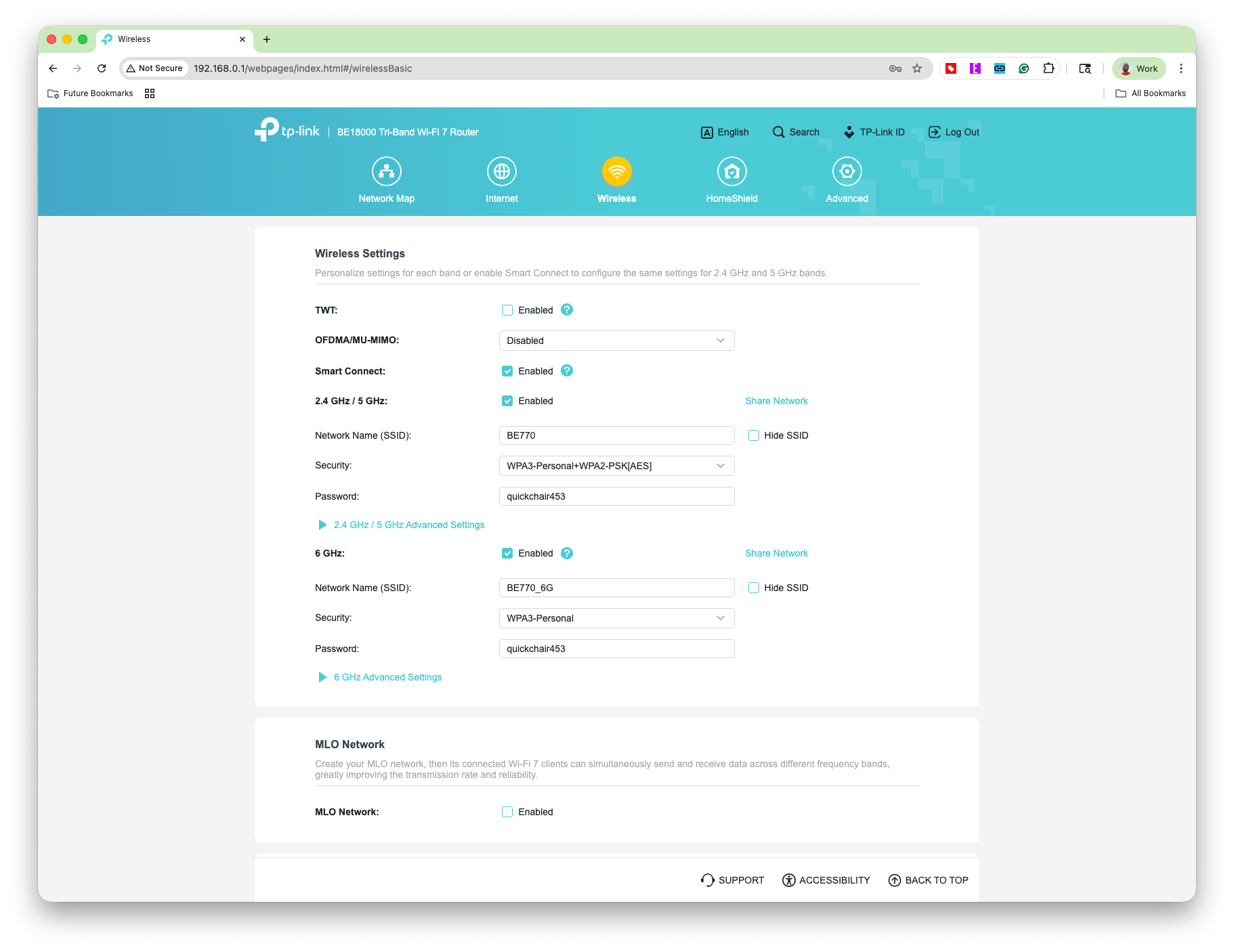

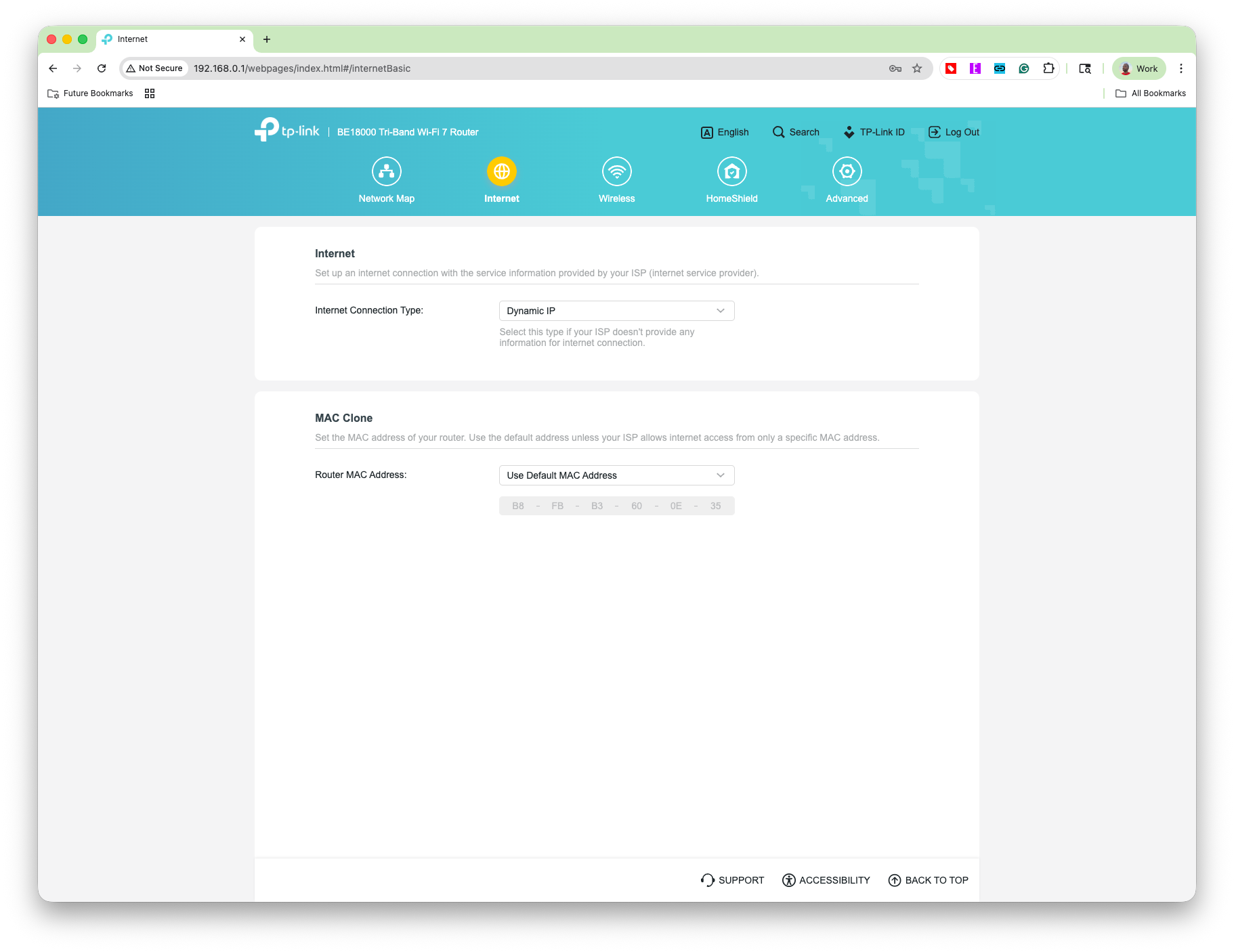

The Internet tab shows your current internet connection type (Dynamic IP in my case) and allows you to clone a MAC address for the router. The Wireless tab provides settings for enabling or disabling Smart Connect. Enabling this feature combines the 2.4 GHz and 5 GHz bands under a single SSID, while disabling it gives each band a unique SSID. You can also enable MLO, Guest, and IoT networks here. You can enable 2.4 GHz, 5 GHz, and 6 GHz bands with a Guest network, while the IoT network only supports the 2.4 GHz and 5 GHz bands.

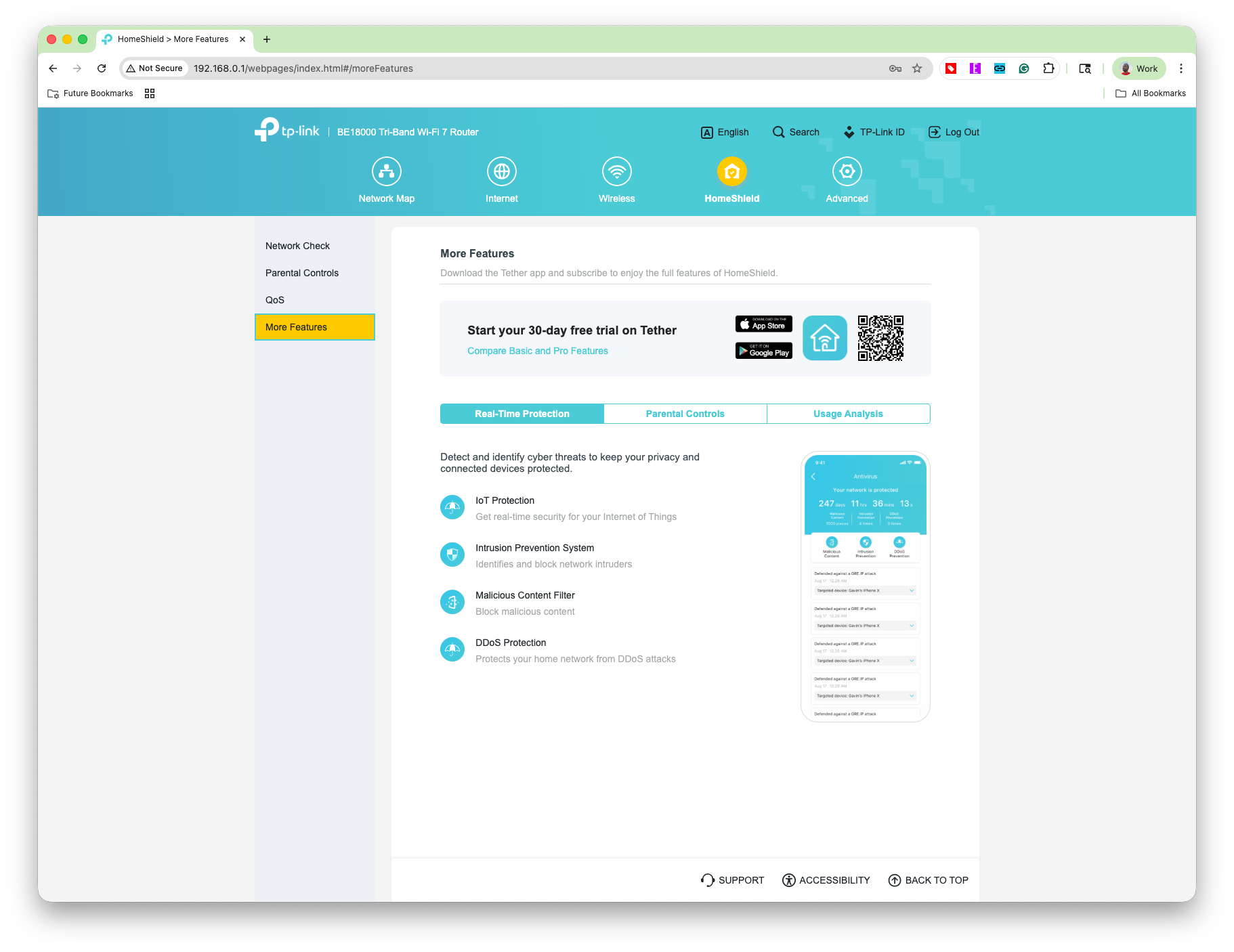

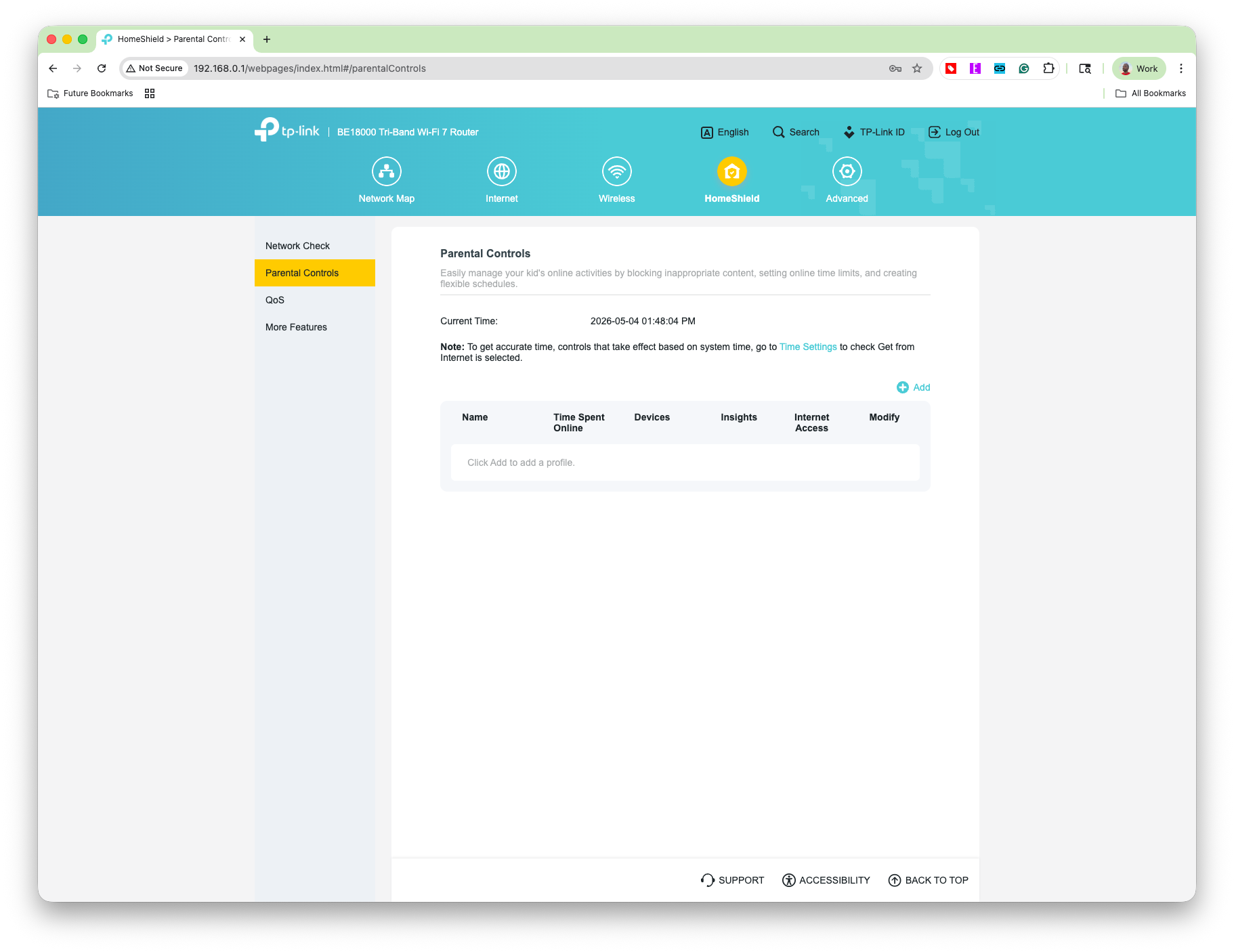

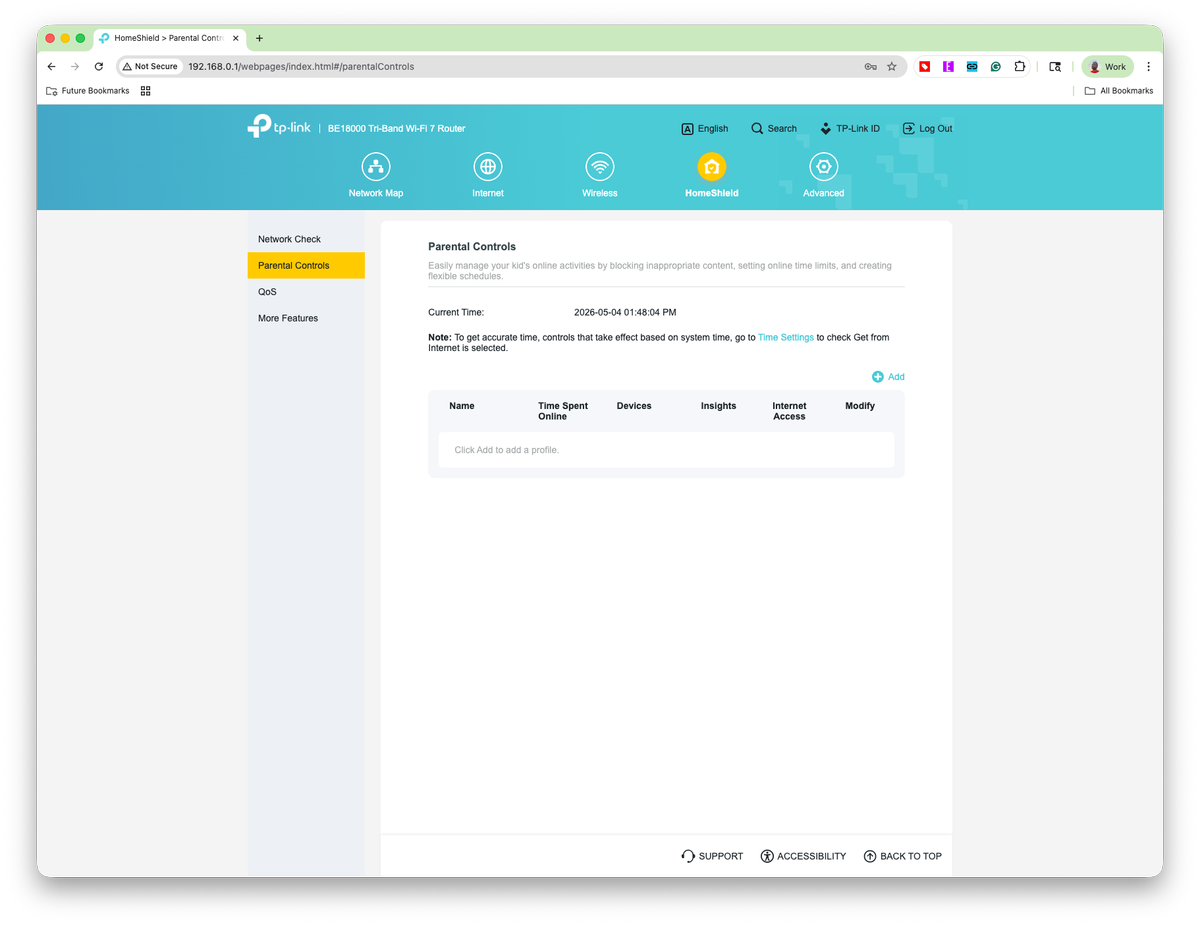

The HomeShield tab provides a limited set of features for free. Network Check scans your network to identify security risks and areas to improve overall performance. There is a limited set of parental controls you can implement per device, and QoS settings you can enable to limit download and upload bandwidth for individual devices. If you pay for the “Pro” tier of HomeShield, you can access IoT Protection, intrusion detection, a malicious content filter, DDoS protection, more powerful parental controls, and network usage statistics. TP-Link offers its Security+ for $35.99/year or its Total Security Package for $69.99/year (for the first year, $129.99 starting with the second year).

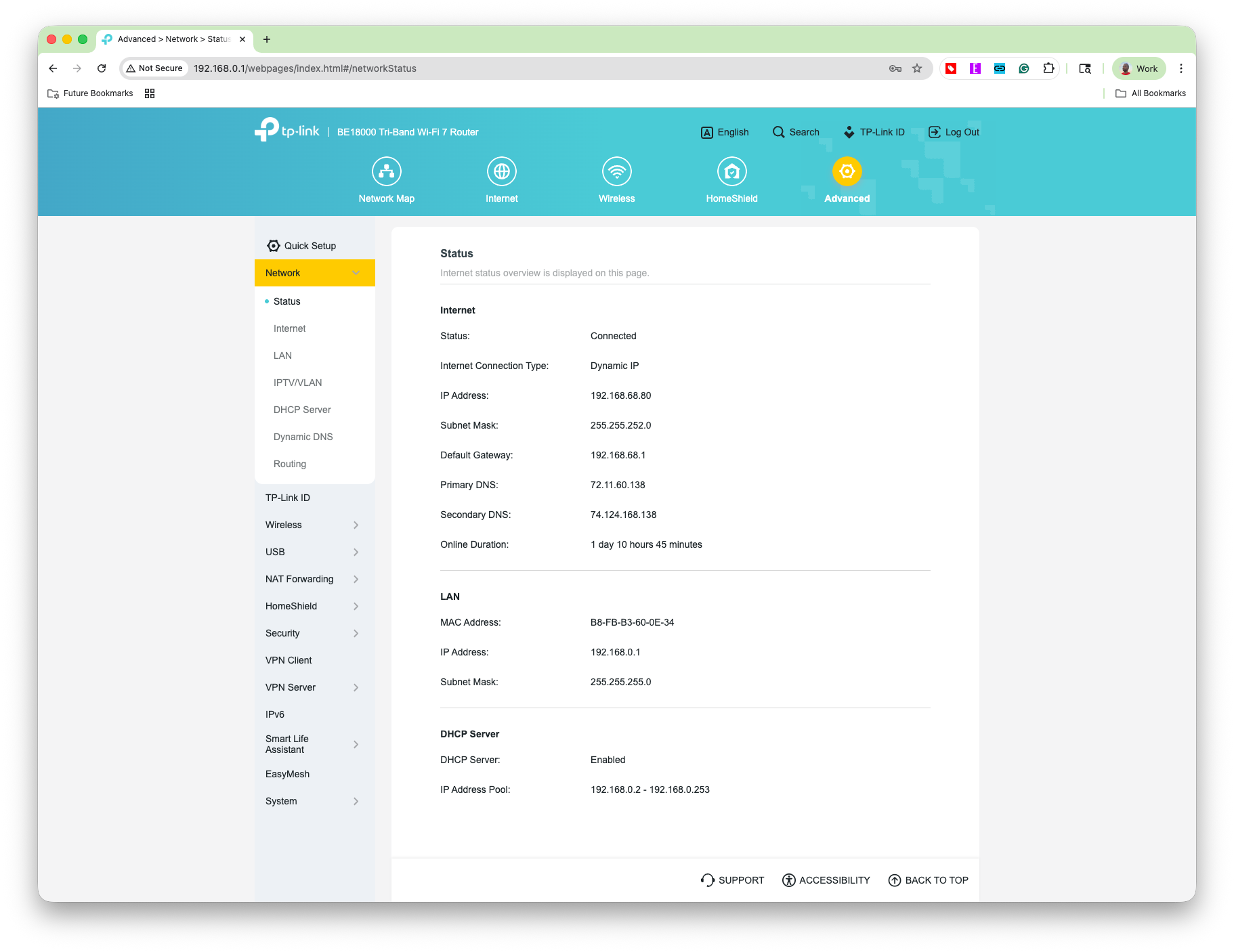

The Advanced tab is home to more granular controls for folks who like to really tinker with their network. Here, you find EasyMesh network setup, VPN integration, firmware updates, and the ability to back up and restore router settings (among many other features).

TP-Link Archer BE770 Router Performance

I tested the Archer BE770 with our venerable wireless client rig, which features an MSI Pro B650M-A Wi-Fi motherboard, AMD Ryzen 5 7600 processor, 32GB of DDR5 memory, a 1TB PCIe 4.0 SSD, MSI Herald-BE Wi-Fi 7 adapter, and Windows 11 Home. Windows 11 has all the latest software updates installed, while the Herald-BE is running the latest drivers available from MSI’s support website. The server is a Windows 11 Home machine with a 10 GbE network card connected to the Archer BE770 router's 10 GbE LAN port.

As always, iPerf3 throughput tests are conducted at 6-foot and 25-foot distances, with and without network traffic. In the congested traffic tests, we include six additional wireless clients streaming 4K YouTube videos across 2.4 GHz, 5 GHz, and 6 GHz wireless bands.

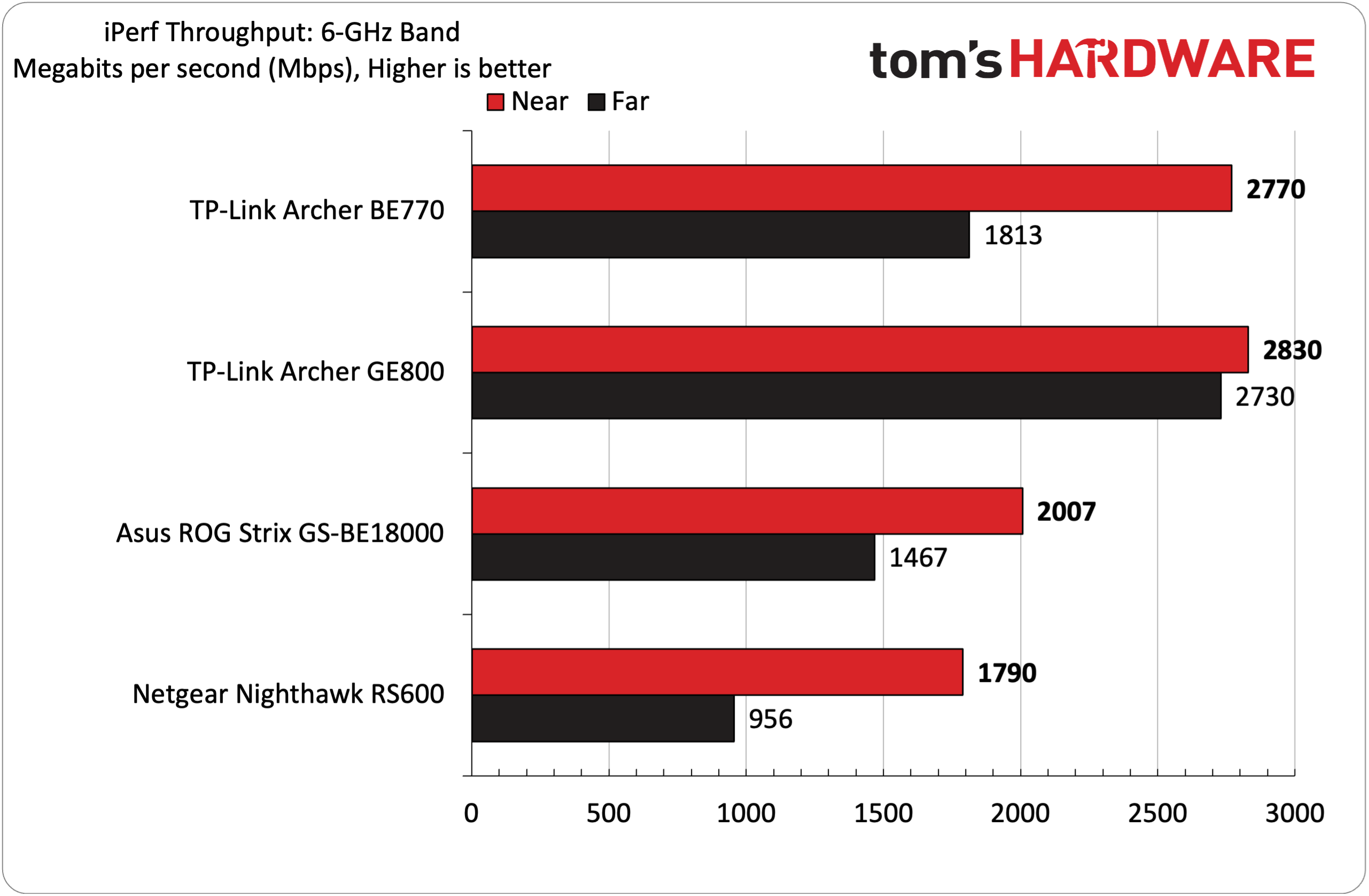

Overall, the Archer BE770 performed quite well, especially on the 6 GHz and 5 GHz bands. When testing iPerf3 on the 6 GHz band with no additional traffic, the Archer BE770 Hit over 2,700 Mbps at close range (6 feet), putting it just behind the first-place Archer GE800 (a gaming-centric router). When the testing distance was pushed out to 25 feet, throughput fell to 1,813 Mbps. While this was significantly behind the Archer GE800's performance, it easily eclipses the Asus ROG Strix GS-BE18000 (1,467 Mbps) and the Netgear Nighthawk RS600 (956 Mbps).

Image 1 of 6

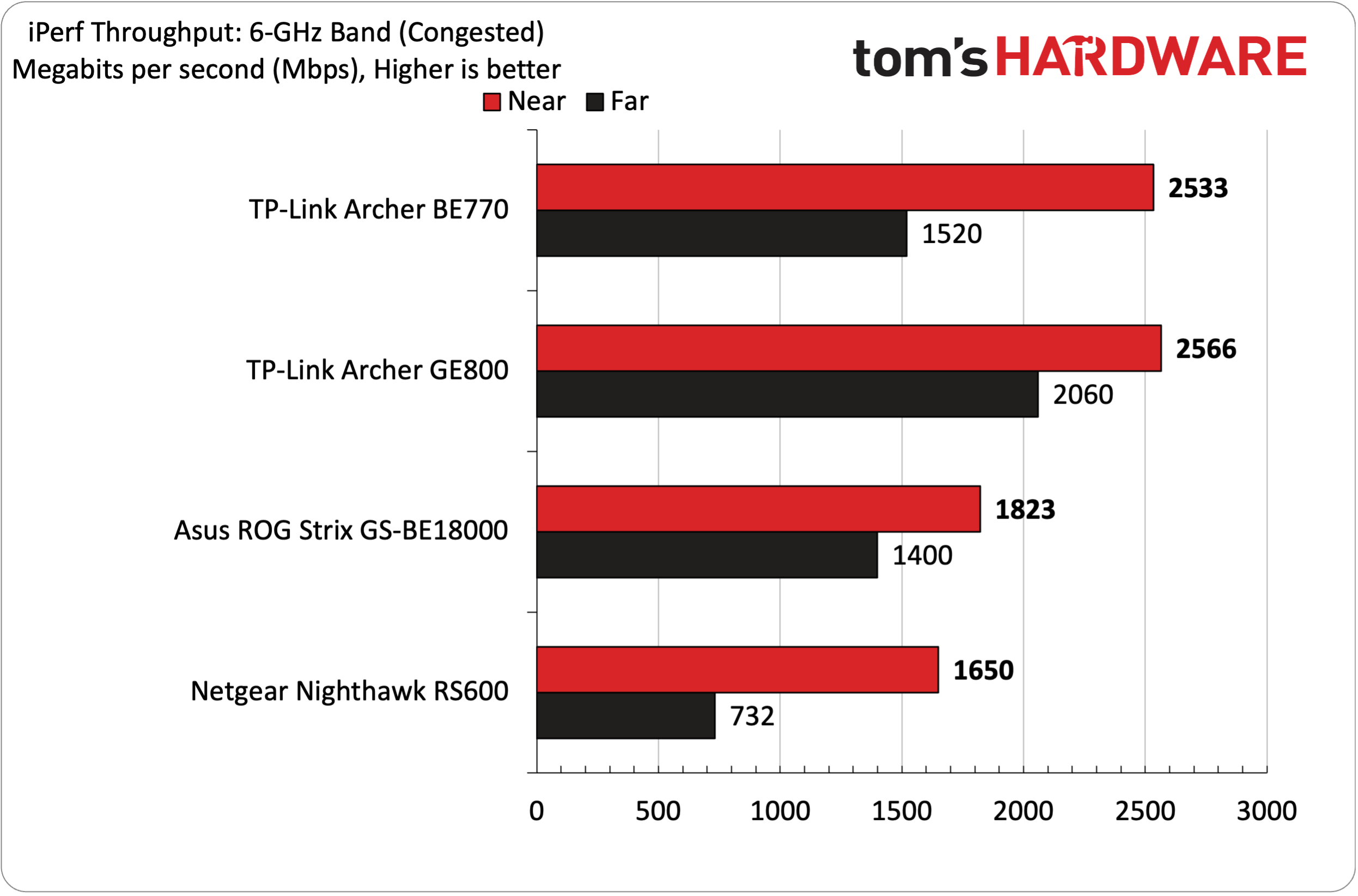

With congested traffic on the 6 GHz band, we saw similar results: the Archer BE770 nearly matched the Archer GE800 at close range (2,533 Mbps versus 2,566 Mbps) but fell short at 25 feet (1,520 Mbps versus 2,060 Mbps).

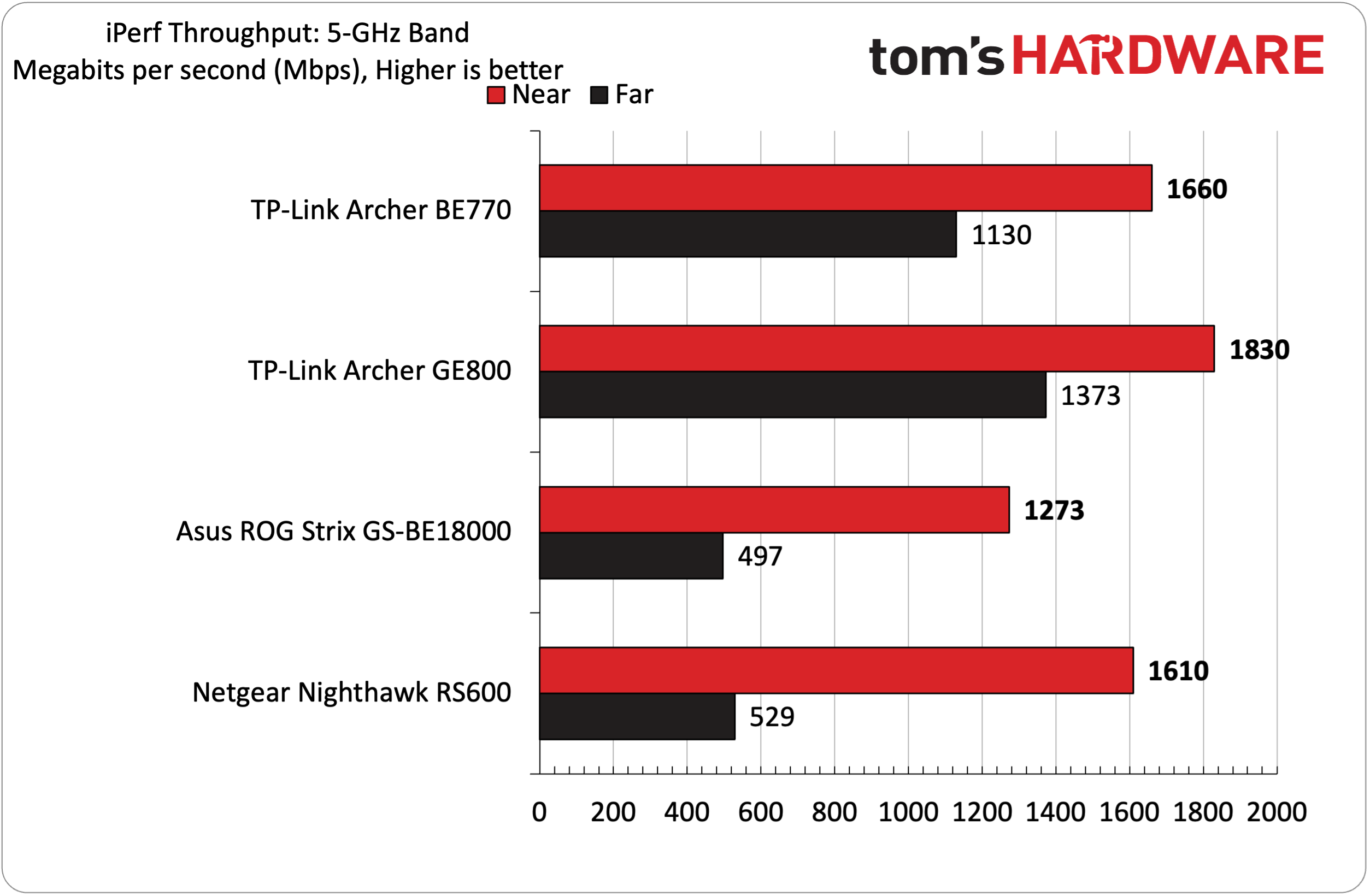

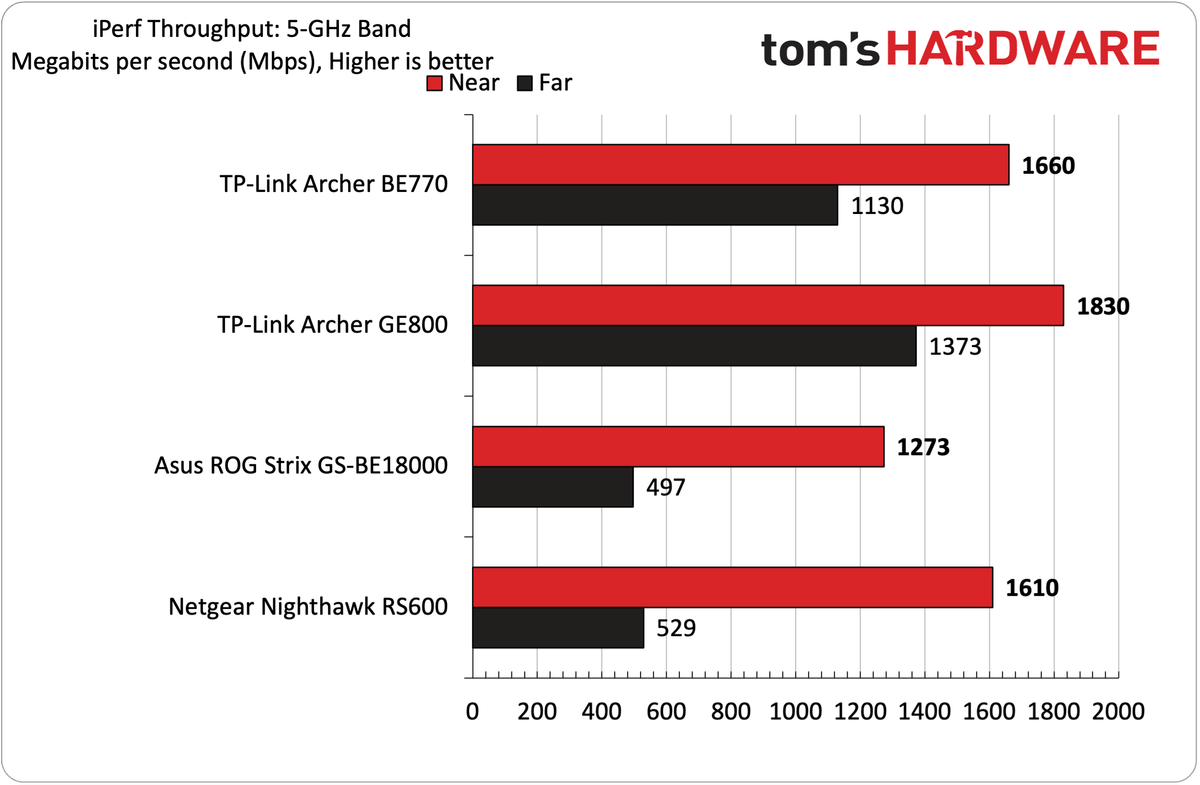

Moving to 5 GHz testing, the Archer BE770 again finished in second place, behind the Archer GE800; however, the gap was smaller at 25 feet.

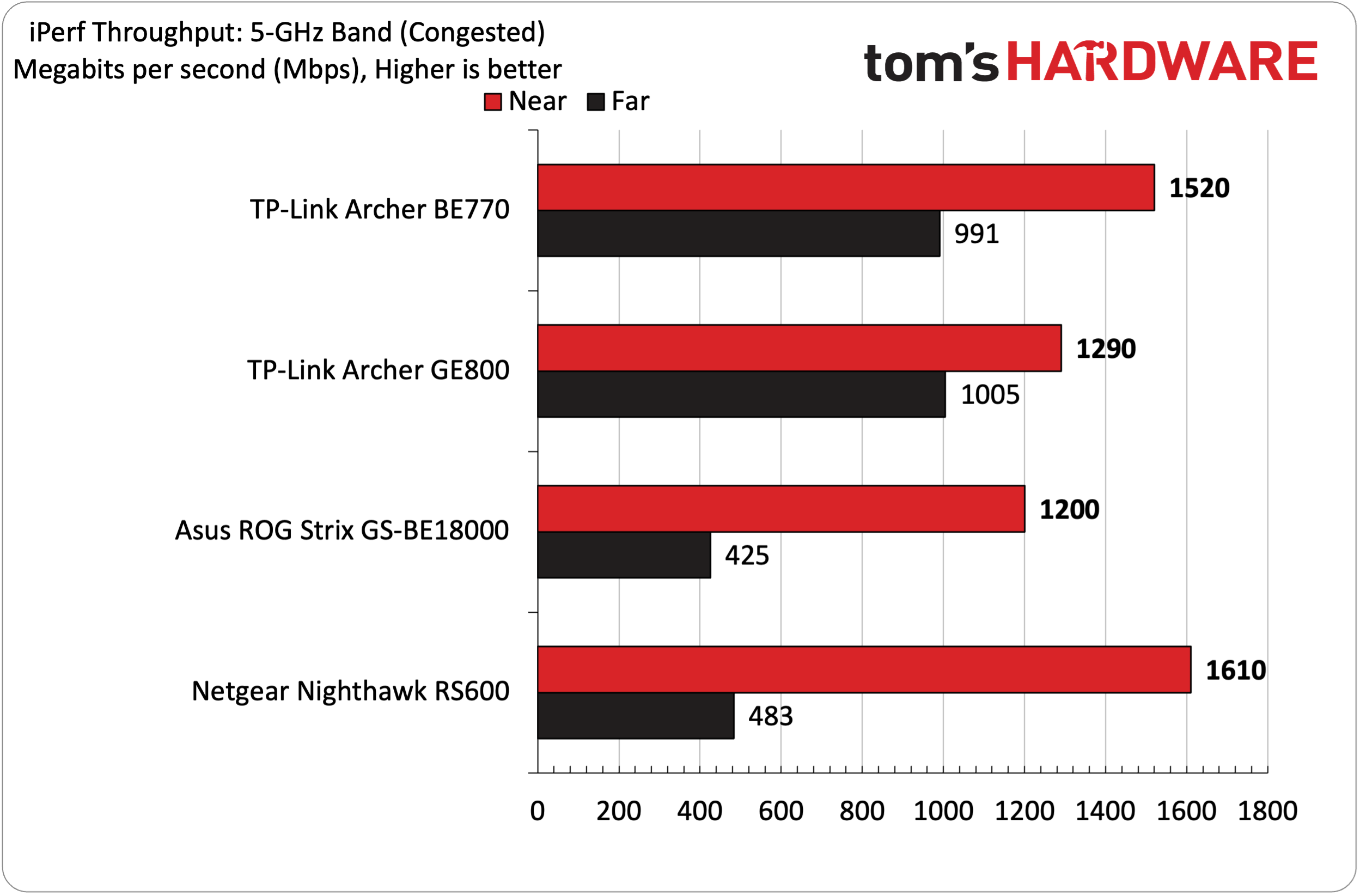

After adding six additional clients to the network for congested tests, the Nighthawk RS600 shot to the top of the charts, reaching 1,610 Mbps at 6 feet, while the Archer BE770 was close behind at 1,520 Mbps. However, the Archer BE770 more than doubled the Nighthawk RS600's performance at 25 feet (991 Mbps versus 483 Mbps).

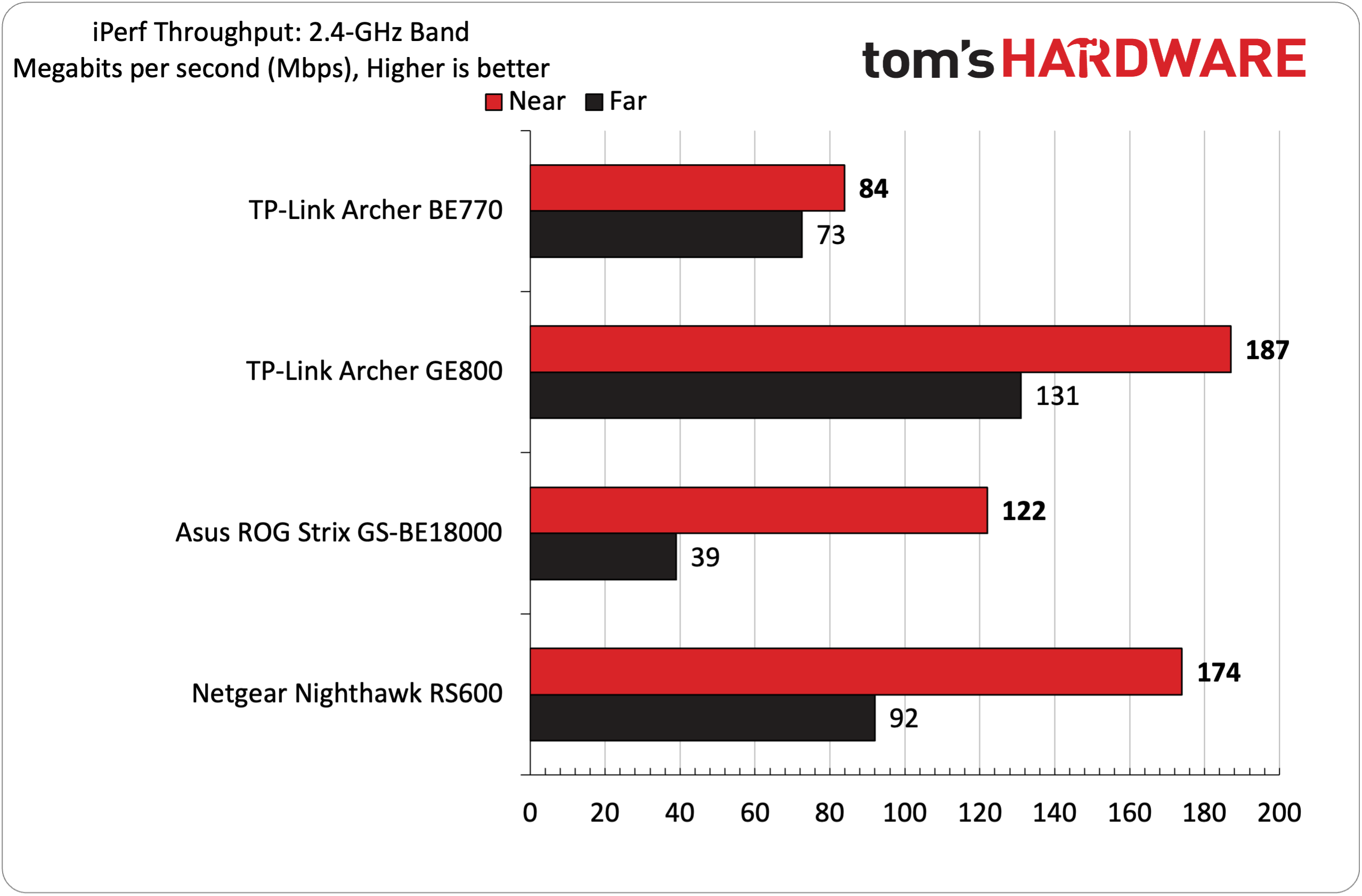

2.4 GHz performance without added traffic was the Archer BE770's strong suit, as we saw 84 Mbps at 6 feet and 73 Mbps at 25 feet. Both the Archer GE800 and Nighthawk RS600 vastly overperformed in these tests.

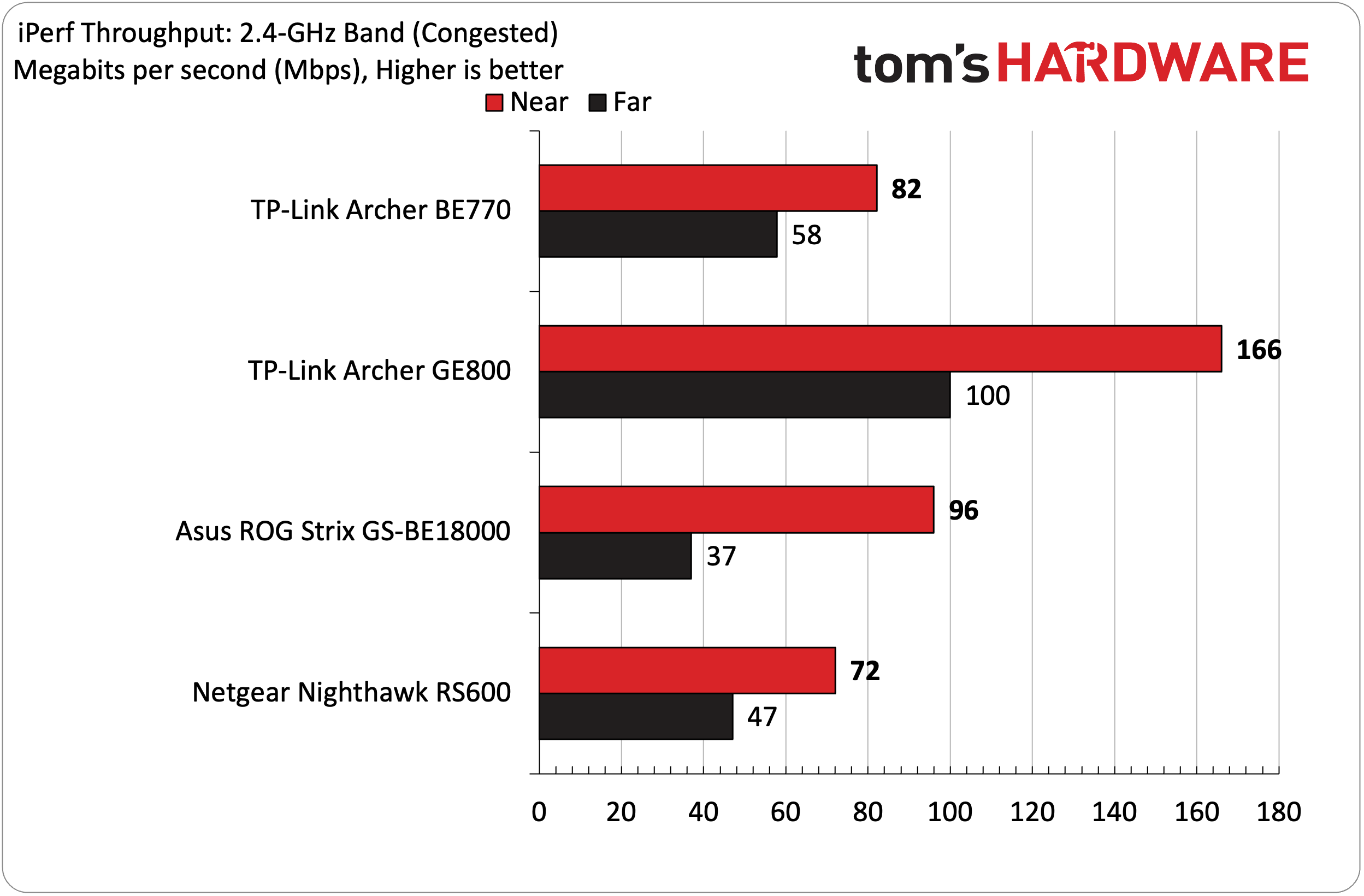

However, when additional traffic came online, the Archer BE770 posted more competitive numbers, hitting 82 Mbps at 6 feet and 58 Mbps at 25 feet. However, those numbers were no match for the Archer GE800, which delivered 166 Mbps and 100 Mbps, respectively.

Bottom Line

The TP-Link Archer BE770 is a good all-around tri-band Wi-Fi 7 router, offering strong performance on the 6 GHz and 5 GHz wireless bands that matter most to client devices like desktops, laptops, and smartphones. Its 2.4 GHz performance could be better, but the clients that connect on the band are likely either older or low-speed IoT devices that aren’t starving for insane network bandwidth.

However, I do have a bone to pick with the port layout. With a street price of $400, there’s no reason that we should be stuck with four GbE LAN ports instead of 2.5 GbE.

For equal money, you’d be better served going with TP-Link’s Archer BE800 (which gives you two 10 GbE ports and four 2.5 GbE ports).
