Advantech 3.5” SBC MIO-5393 Offers Intel 9th Gen CPUs

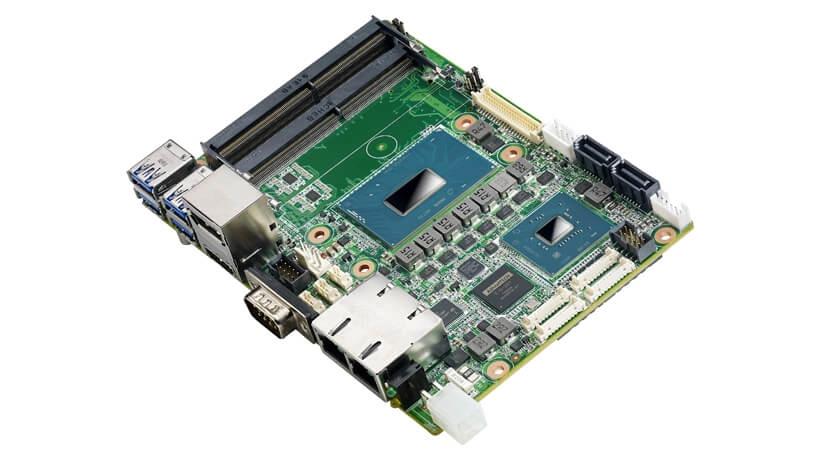

Squeezing a 9th Gen Intel Xeon/Core based computer into a package 5.78i by 4.01in (146 by 102 mm) is no small feat but Advantech who are a provider of IoT (Internet of Things) and embedded platforms have done just that and released the 3.5” SBC MIO-5393.
To cut to the chase, this is not a “Raspberry Pi killer” the two boards are focused on different users and markets. The MIO-5393 is offered as a micro server / kiosk platform for industrial use or scenarios involving demanding environments, but this board could be easily used in the home if that were your wish.

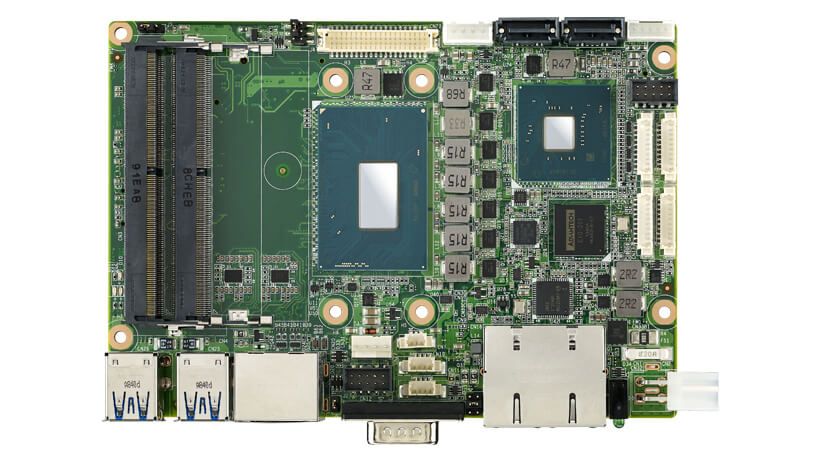

The MIO-5393 comes in four configurations, each with a CPU ranging from an Intel 8th Gen Core i5 8400H to a Xeon E-2276ME. Each configuration can use up to 64GB of DDR4-2400 (ECC for the Xeon model) and thankfully RAM is easily upgraded by the user.

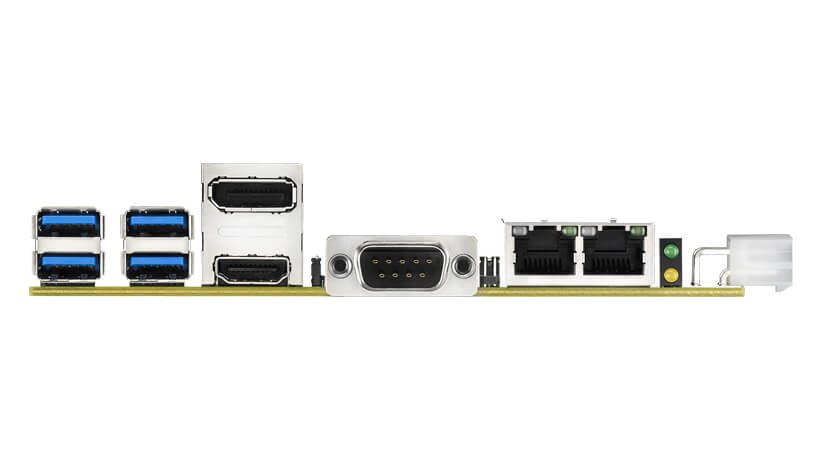

Storage comes in the form of one PCIe 3.0 NVMe drive slot and two SATA III ports. Four USB 3.2 Gen 2 ports offer just enough ports for basic use. It is possible to connect up to three displays to the board, two via DisplayPort and HDMI and a third via a LVDS connector. The Intel Gen 9 onboard graphics support up to 4096x2160 @ 30 Hz (HDMI), 4096x2304 @ 60Hz (DP) and 1920 x 1200 at 60Hz (LVDS).
As standard there is no wireless connectivity but there are two M.2 expansion slots which can be used with WiFi and 4G / LTE modules. Wired network connectivity is provided by two Gigabit Ethernet ports. An RS232/422/485 port is on hand in case an external serial connection is required. Audio is supplied via a Realtek ALC888S chipset, and instead of built in audio ports an audio cable is used to break out the connections from the board.
This is a lot of power for such a small board, and this is reflected in the price, which is available on request from Advantech.
Stay On the Cutting Edge: Get the Tom's Hardware Newsletter
Get Tom's Hardware's best news and in-depth reviews, straight to your inbox.
Les Pounder is an associate editor at Tom's Hardware. He is a creative technologist and for seven years has created projects to educate and inspire minds both young and old. He has worked with the Raspberry Pi Foundation to write and deliver their teacher training program "Picademy".
Thank you for not including "Raspberry Pi" into the title.
Alternate descriptionSmall form factor industrial board with Intel 4 to 6-core Xeon or Core.
Pricing: from $1087 to $1545 depending on CPU and options (i.e. chipset, ECC).
User must add memory (up to 64GB), PSU (12v, 4-pin CPU or alternate jack).
1 x CAN bus, 2 x 8 Bit GPIO, 1 x I2C, 1 x SMBus, 1 x RS-232/422/485, enables integration with sensors, external systems for industrial applications.
Watchdog.
0 ~ 60° C operational temperature limits usage as car media system to countries with no cold winters and not too hot summers (unless integrated in AC compartment).
Best usage: industrial, medical, signage, etc.
Usage as Home HTPC or NAS or possible but you will spend $$$ on stuff you'll never use.
