Apexgaming AG-850M PSU Review
Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.
Ripple Measurements
To learn how we measure ripple, please click here.

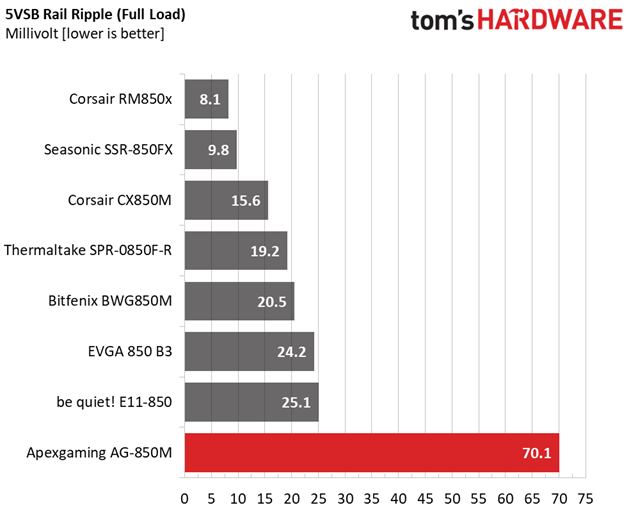

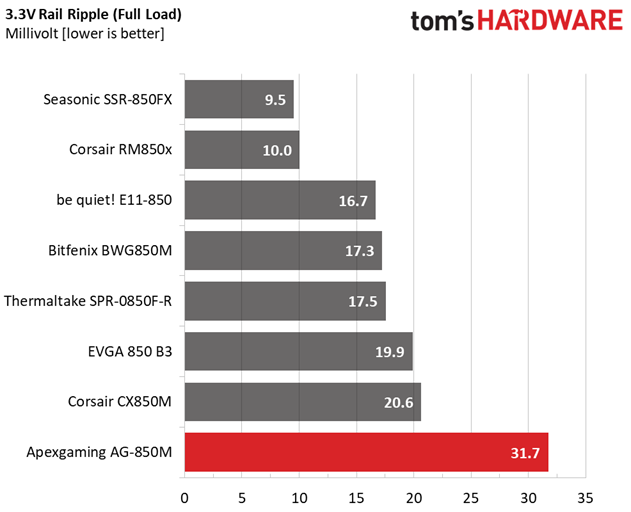

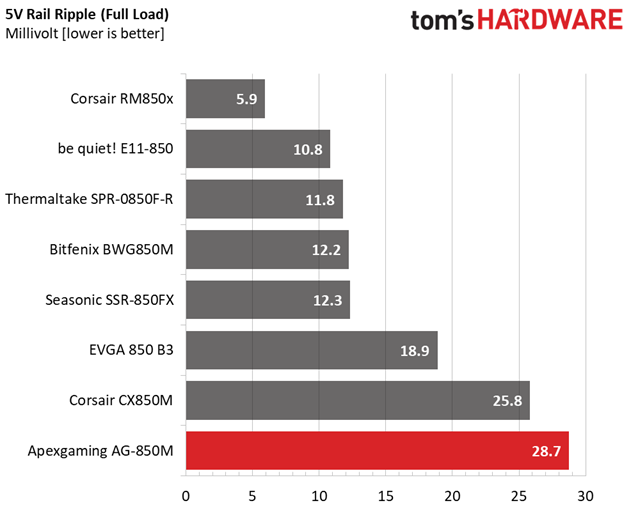

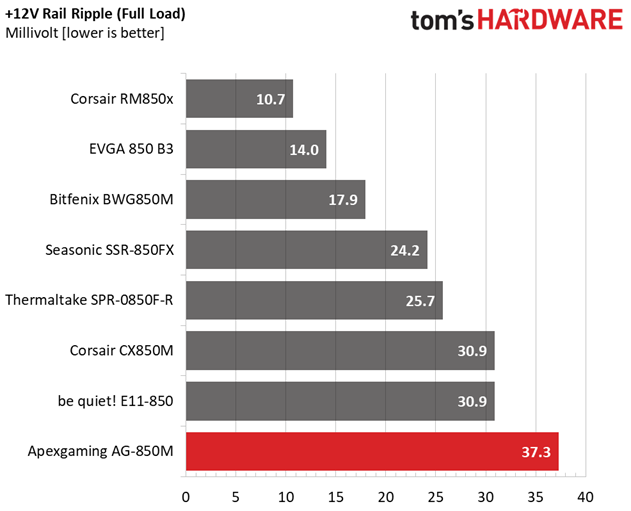

The following table includes the ripple levels we measured on the AG-850M’s rails. The limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V, and 5VSB).
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
|---|---|---|---|---|---|
| 10% Load | 8.2mV | 11.7mV | 13.8mV | 26.9mV | Pass |
| 20% Load | 14.0mV | 14.0mV | 15.9mV | 35.4mV | Pass |
| 30% Load | 17.1mV | 14.9mV | 17.7mV | 35.4mV | Pass |
| 40% Load | 18.6mV | 16.5mV | 18.4mV | 38.1mV | Pass |
| 50% Load | 21.5mV | 17.6mV | 20.7mV | 51.7mV | Fail |
| 60% Load | 23.0mV | 19.0mV | 22.0mV | 51.2mV | Fail |
| 70% Load | 25.0mV | 20.4mV | 23.7mV | 60.2mV | Fail |
| 80% Load | 26.7mV | 22.4mV | 25.5mV | 68.5mV | Fail |
| 90% Load | 30.7mV | 24.1mV | 26.9mV | 66.0mV | Fail |
| 100% Load | 37.3mV | 28.7mV | 31.7mV | 70.1mV | Fail |
| 110% Load | 38.7mV | 28.9mV | 31.8mV | 74.6mV | Fail |
| Cross-Load 1 | 15.0mV | 31.4mV | 28.7mV | 41.6mV | Pass |
| Cross-Load 2 | 37.0mV | 24.5mV | 27.8mV | 76.8mV | Fail |
View Original
View Original
View Original
View Original
The first sample we tested had a problem with its 5VSB rail, where ripple was clearly out of control. Since we had a second sample at our disposal, we tested its ripple and measured significantly better performance. The following table shows the second AG-850M sample's ripple results.
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
|---|---|---|---|---|---|
| 10% Load | 8.5mV | 13.2mV | 12.9mV | 5.6mV | Pass |
| 20% Load | 16.1mV | 15.6mV | 15.4mV | 5.8mV | Pass |
| 30% Load | 21.4mV | 17.0mV | 17.6mV | 6.5mV | Pass |
| 40% Load | 25.7mV | 18.3mV | 19.3mV | 7.4mV | Pass |
| 50% Load | 26.6mV | 20.5mV | 21.0mV | 8.9mV | Pass |
| 60% Load | 30.4mV | 22.1mV | 23.0mV | 9.9mV | Pass |
| 70% Load | 36.4mV | 23.9mV | 25.7mV | 10.6mV | Pass |
| 80% Load | 39.2mV | 26.7mV | 29.2mV | 11.8mV | Pass |
| 90% Load | 43.1mV | 28.7mV | 31.0mV | 13.2mV | Pass |
| 100% Load | 53.5mV | 32.7mV | 36.3mV | 17.5mV | Pass |
| 110% Load | 56.6mV | 34.4mV | 37.0mV | 17.8mV | Pass |
| Cross-Load 1 | 16.1mV | 30.0mV | 30.8mV | 12.0mV | Pass |
| Cross-Load 2 | 50.4mV | 25.7mV | 29.1mV | 16.2mV | Pass |
The second sample fares much better in our 5VSB measurements. But that's not the case for all rails, particularly the always-critical +12V one.
Ripple Oscilloscope Screenshots

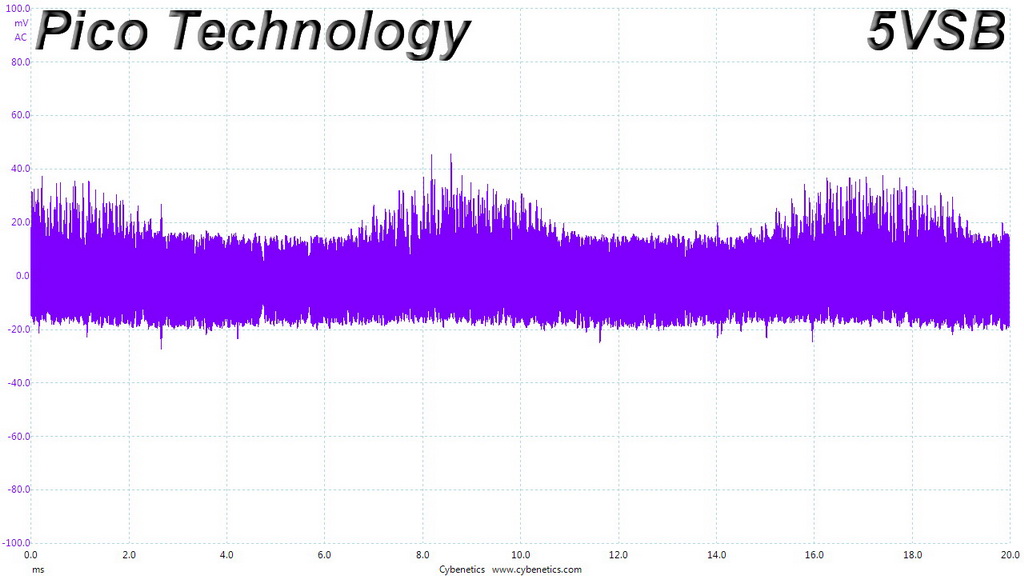

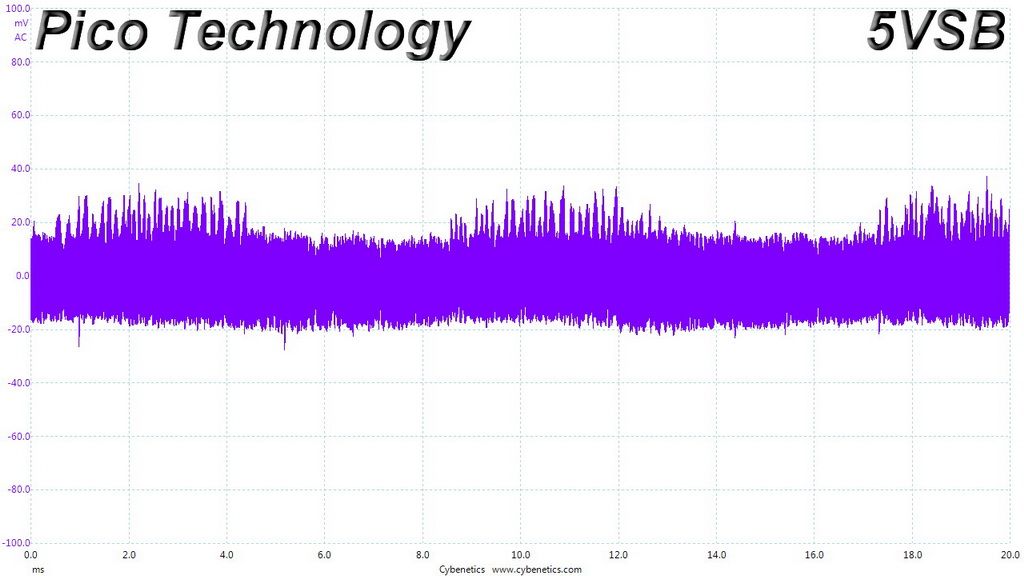

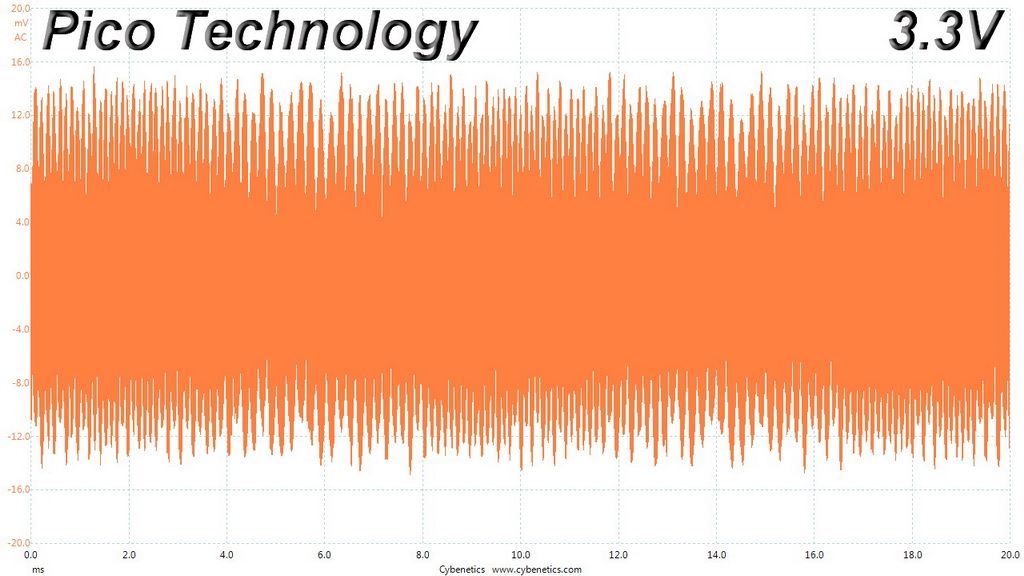

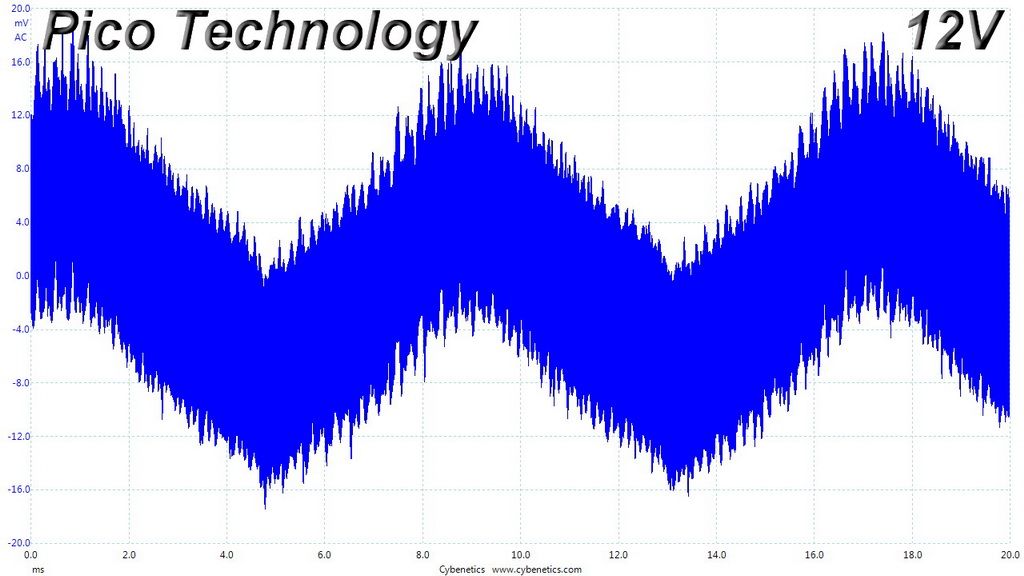

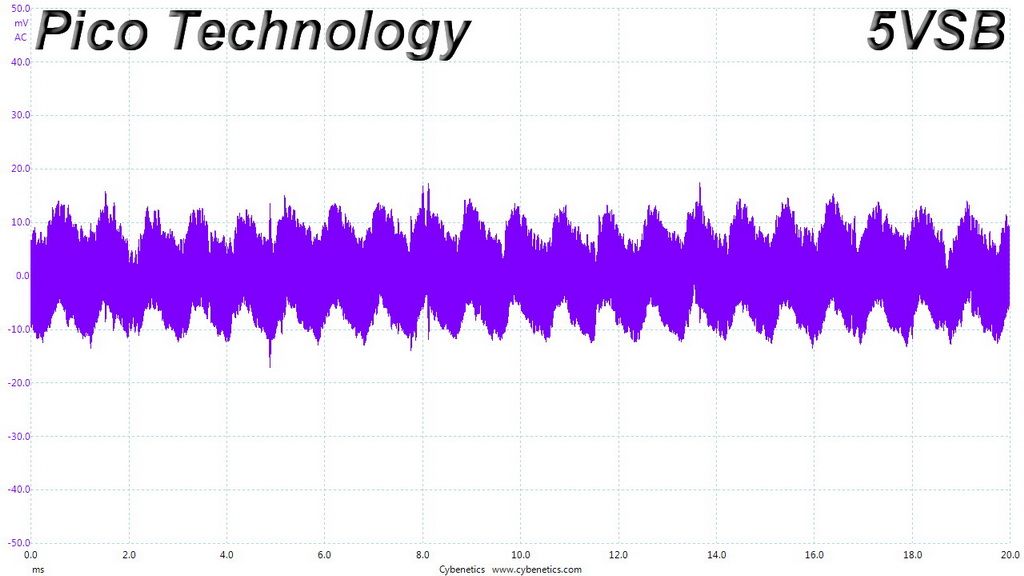

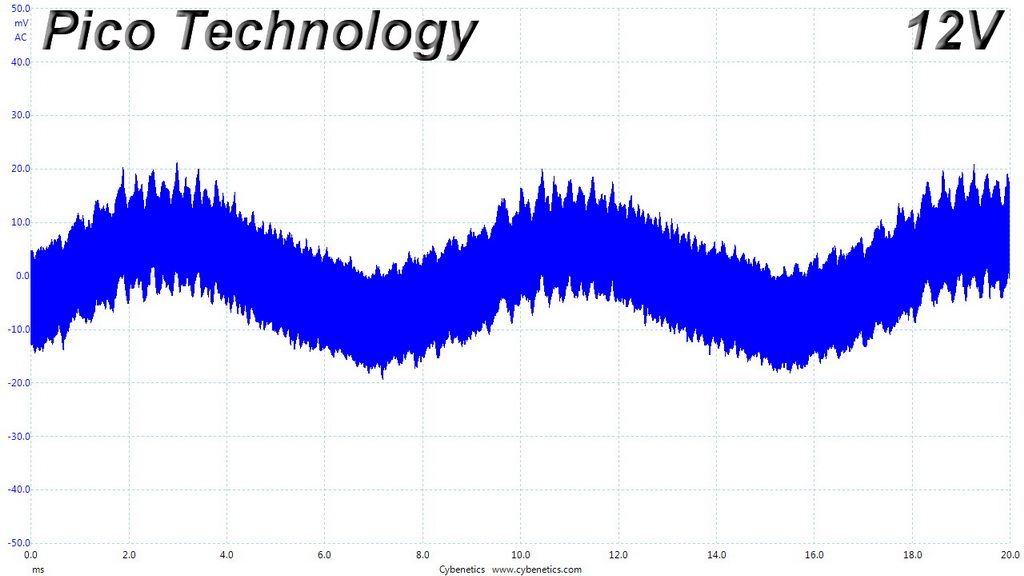

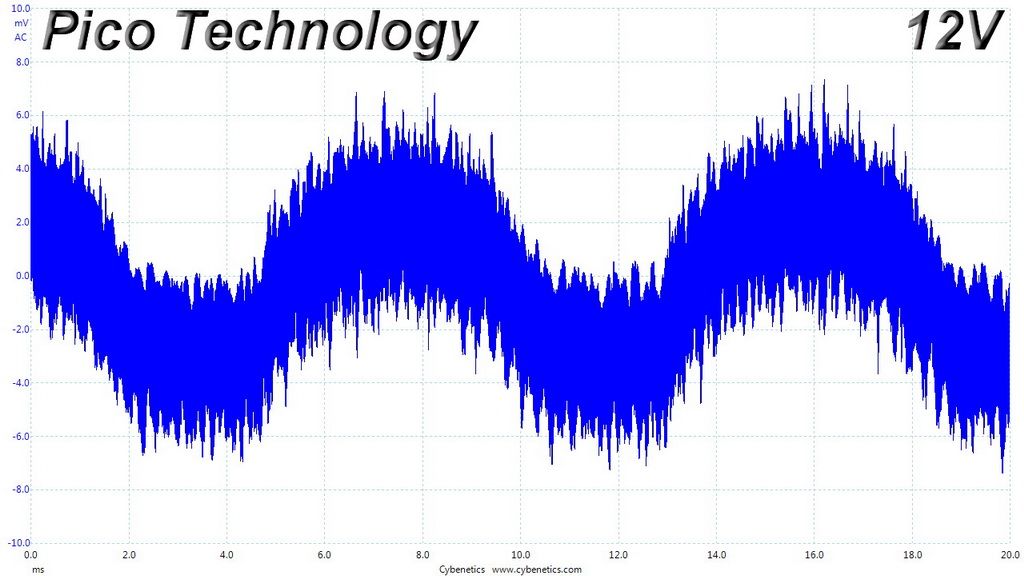

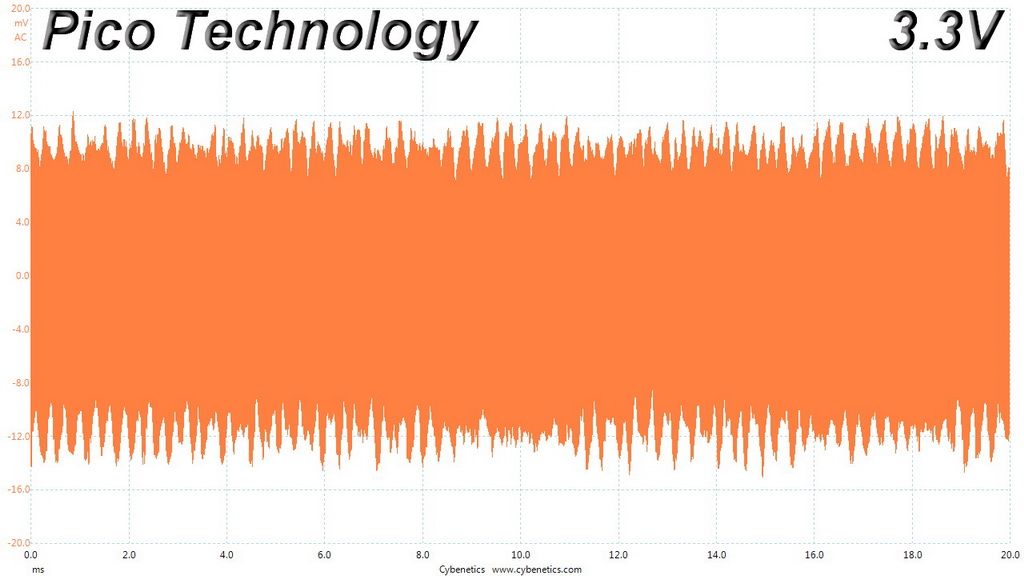

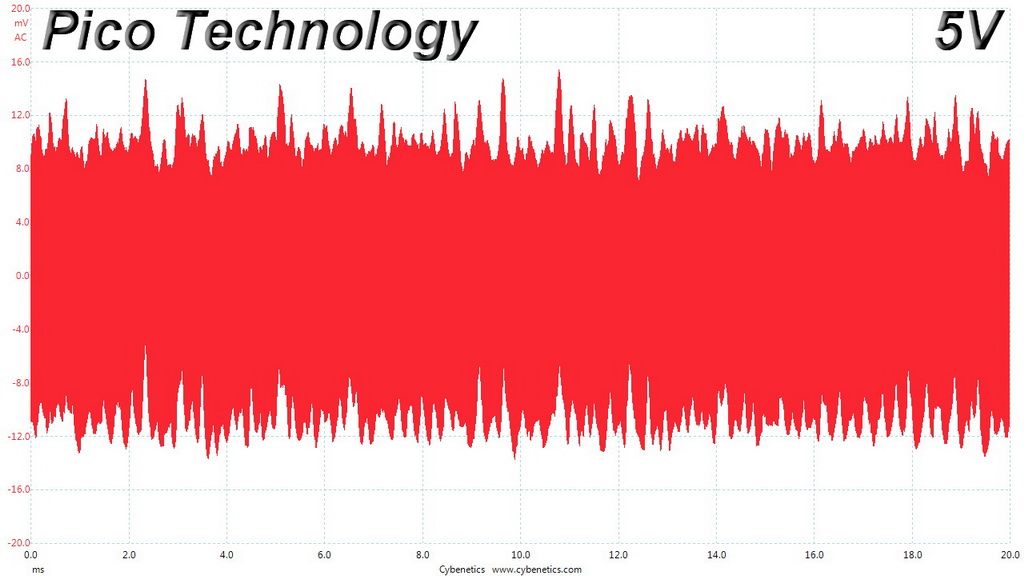

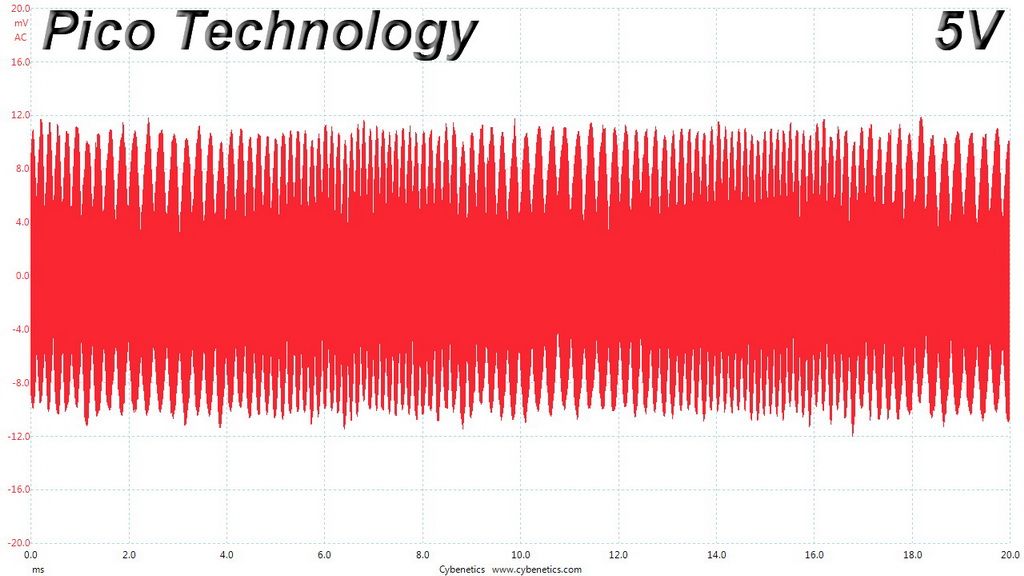

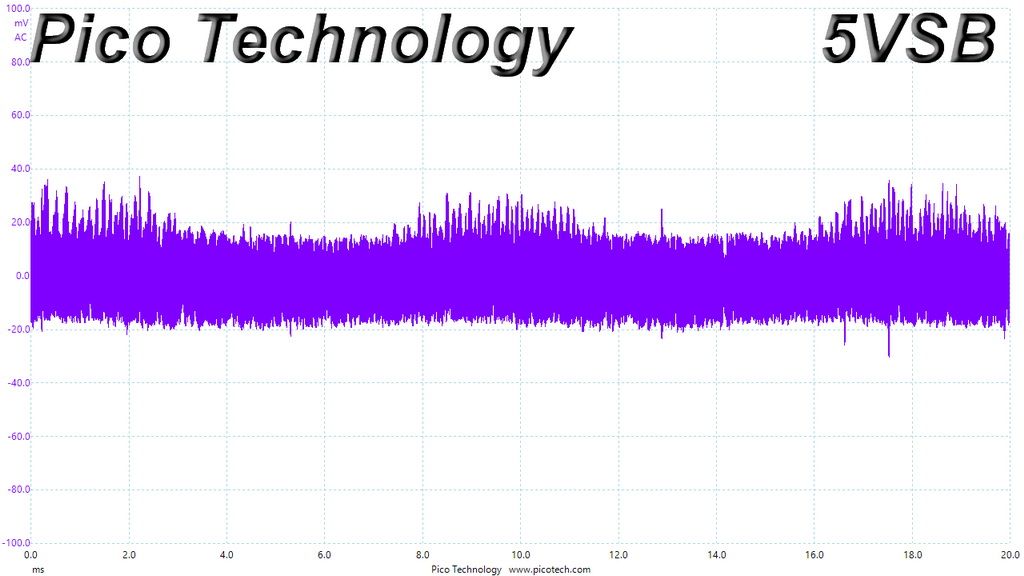

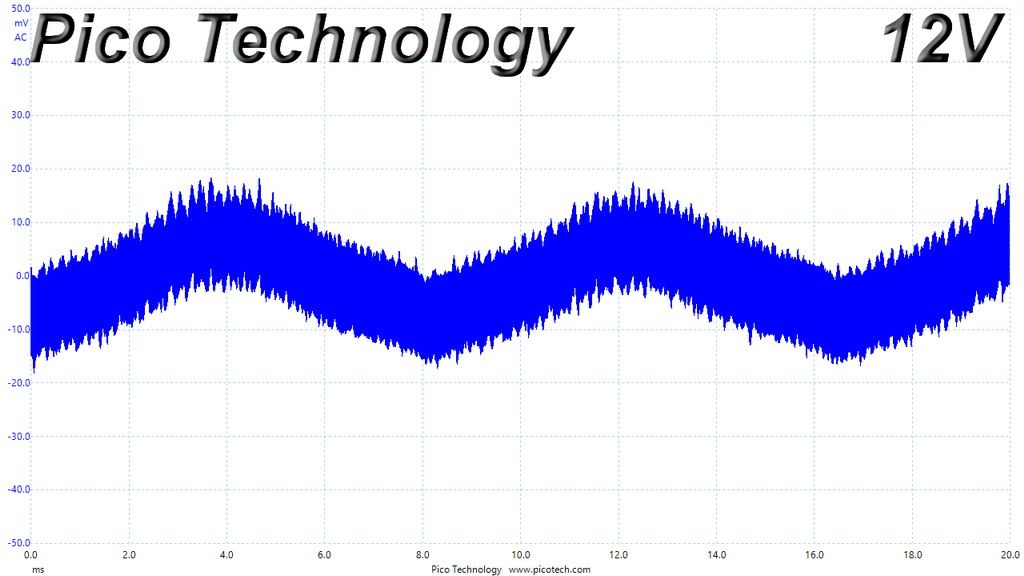

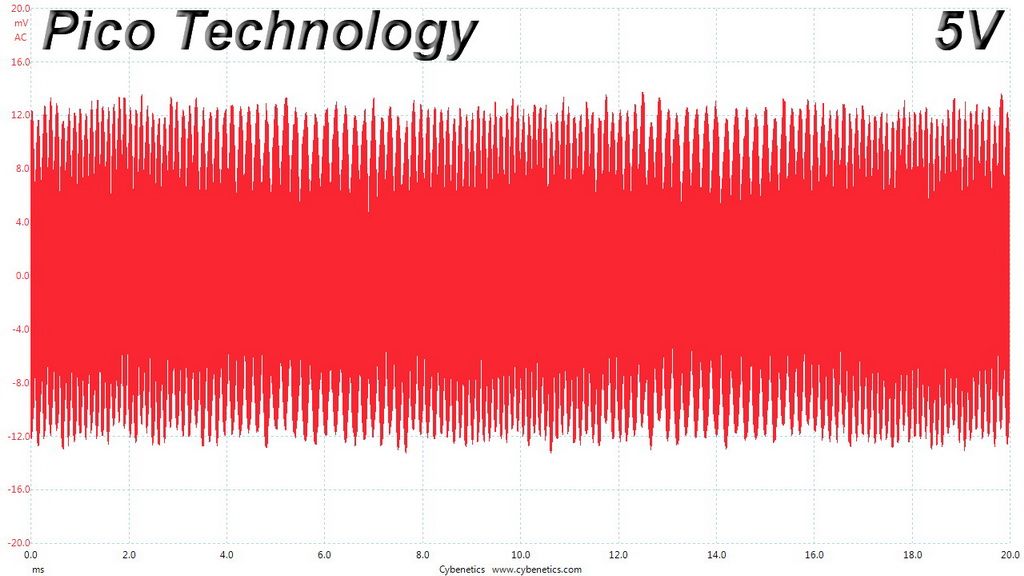

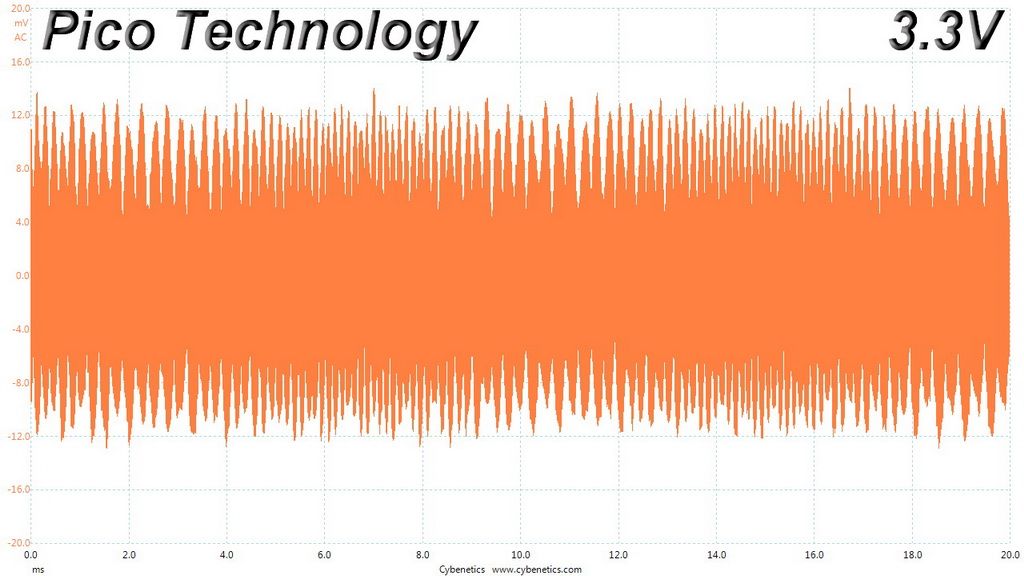

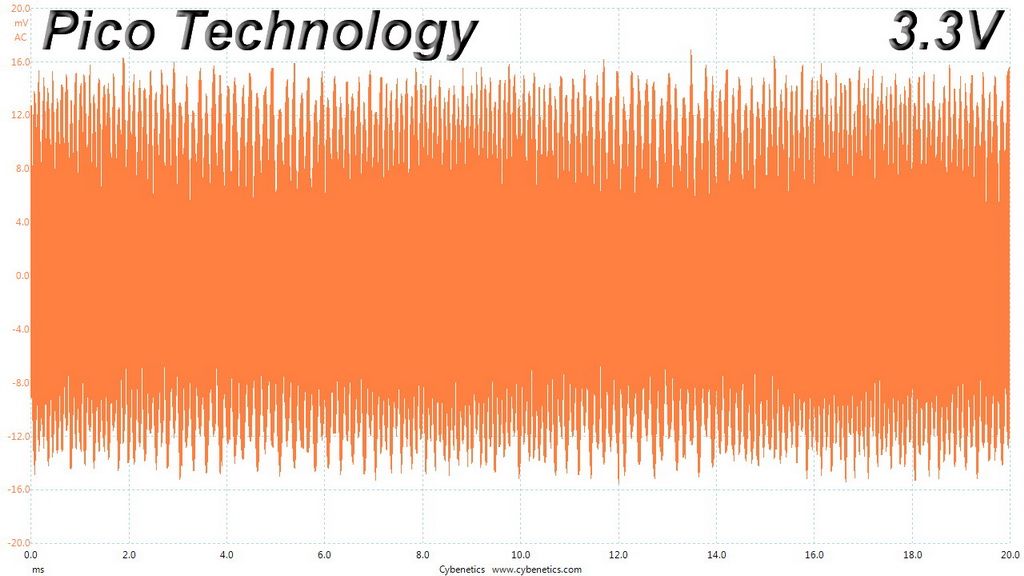

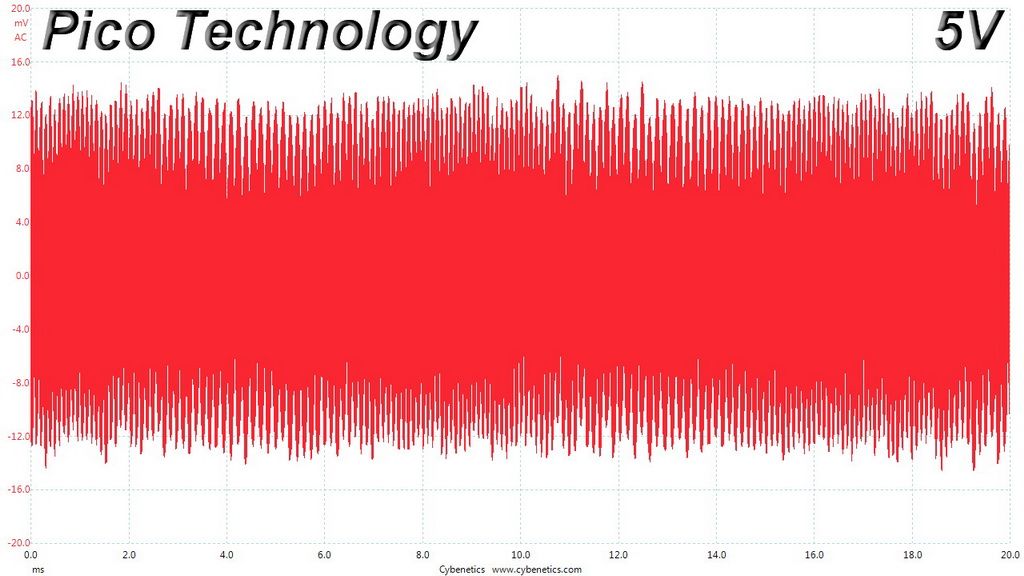

The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V and 5VSB). We usually set 0.01 V/Div (each vertical division/box equals 0.01V), but in some cases we use a smaller setting as well, if the registered ripple is very low.
Ripple At Full Load
View Original
View Original
View Original
View Original
Ripple At 110-Percent Load
View Original
View Original
View Original
View Original
Ripple At Cross-Load 1
View Original
View Original
View Original
View Original
Ripple At Cross-Load 2
View Original
View Original
View Original
View Original
