Test Setup
Swipe to scroll horizontally
| Hardware | |
|---|---|
| Processor | Intel Pentium 4, 2.0 GHz256 kB L2 Cache (Willamette) |
| Motherboard | Intel 845EBTIntel 845E ChipsetBIOS BT84520A.86A.0024.P10 |
| Memory | 256 MB DDR/PC2100, CL2.0Micron/Crucial |
| Controller | i845E UltraDMA/100-Controller (ICH4)On-Board USB 2.0 (ICH4)On-Board FireWire |
| Graphics Card | ATI Radeon SDRAM, 32 MB |
| Network | 3COM 905TX PCI 100 MBit |
| OS | Windows XP Professional 5.10.2600 Service Pack 1 |
| Benchmarks & Measurements | |
| Office-Performance | ZD WinBench 99 - Business DiskWinmark 2.0 c't h2benchw |
| High-End-Performance | ZD WinBench 99 - High-End Disk Winmark 2.0 |
| Performance Measurements | c't h2benchw 3.6 |
| I/O-Performance | IOMeter 2003.05.10 |
| Drivers & Settings | |
| Graphic Driver | 5.1.2001.0 (Windows XP Standard) |
| IDE Driver | Intel INF Drivers 5.02.1003 |
| DirectX version | 9.0c |
| Resolution | 1024x768, 16 Bit, 85 Hz refresh |
Data Transfer Diagram

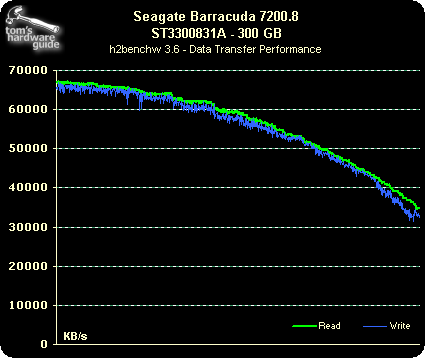

Seagate ST3300831A - 300 GB

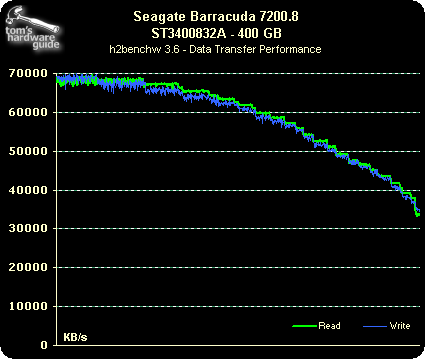

Seagate ST3400832A - 400 GB
