Protection Features
Check out our PSUs 101 article to learn more about PSU protection features.
| OCP (Cold @ 25°C) | 12V: 76.4A (109.14%), 11.803V 5V: 26.5A (132.5%), 4.843V 3.3V: 24.5A (122.5%), 3.410V 5VSB: 3.2A (128%), 4.948V |
| OCP (Hot @ 38°C) | 12V: 75.4A (107.71%), 11.484V 5V: 25.1A (125.5%), 4.869V 3.3V: 22A (110%), 3.357V 5VSB: 3.2A (128%), 4.947V |
| OPP (Cold @ 25°C) | 901.99W (107.38%) |
| OPP (Hot @ 39°C) | 898.12W (106.92%) |
| OTP | ✓ (121°C @ secondary side) |
| SCP |
12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓ |
| PWR_OK | Accurate but lower than 16ms |
| NLO | ✓ |
| SIP | Surge: - Inrush: NTC Thermistor |
The OCP triggering points are low at 12V, and this is good since this rail cannot take much abuse because of the increased energy losses. OPP is set low, too. Moreover, the minor rails are conservatively set.
It is nice to see OTP in this outdated platform, but there is no surge protection. Finally, we should mention that the PSU survived all of our tough protection features tests.
DC Power Sequencing
According to Intel’s most recent Power Supply Design Guide (revision 1.4), the +12V and 5V outputs must be equal to or greater than the 3.3V rail at all times.
Unfortunately, Intel doesn't mention why it is so important to always keep the 3.3V rail's voltage lower than the levels of the other two outputs.

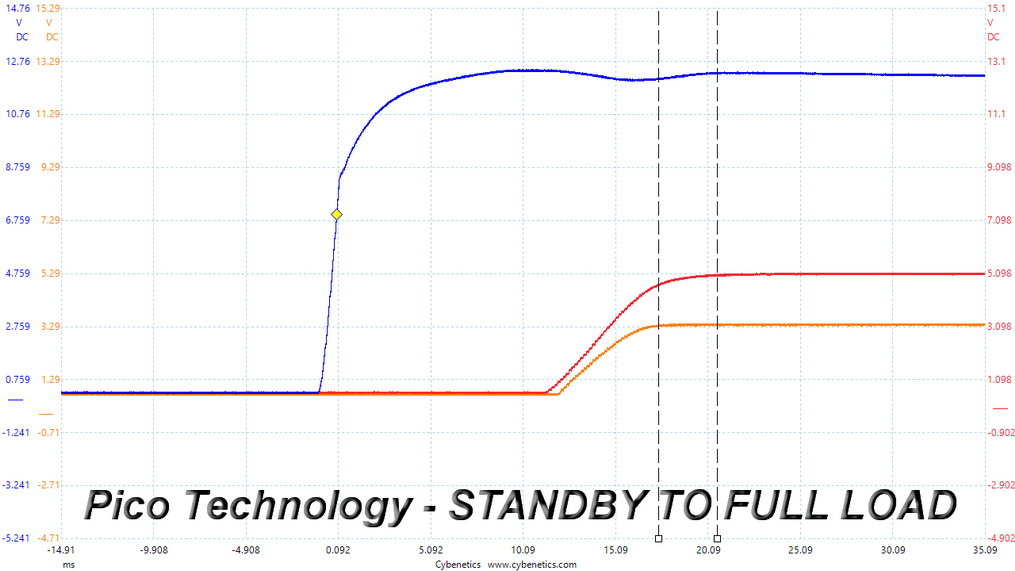

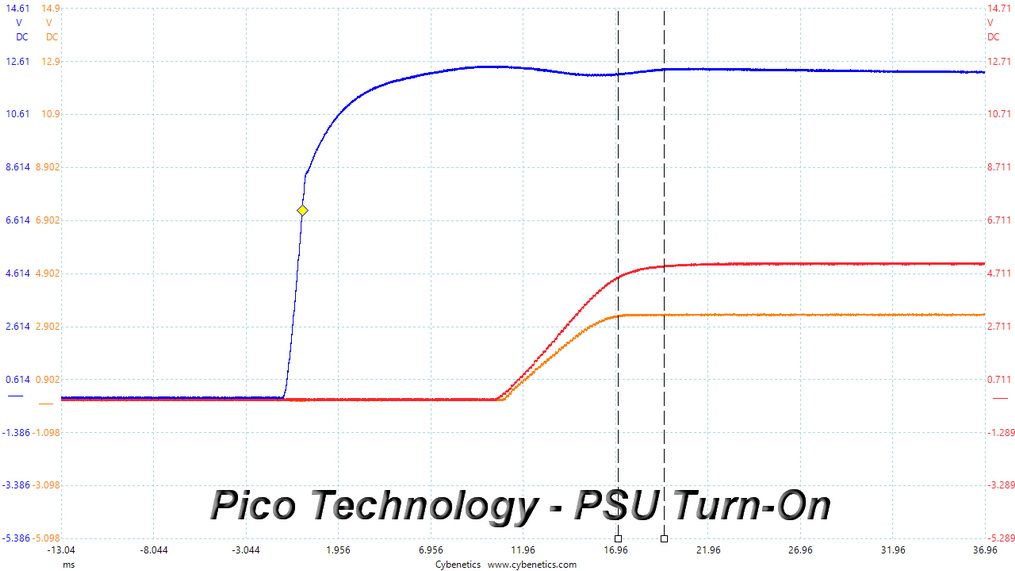

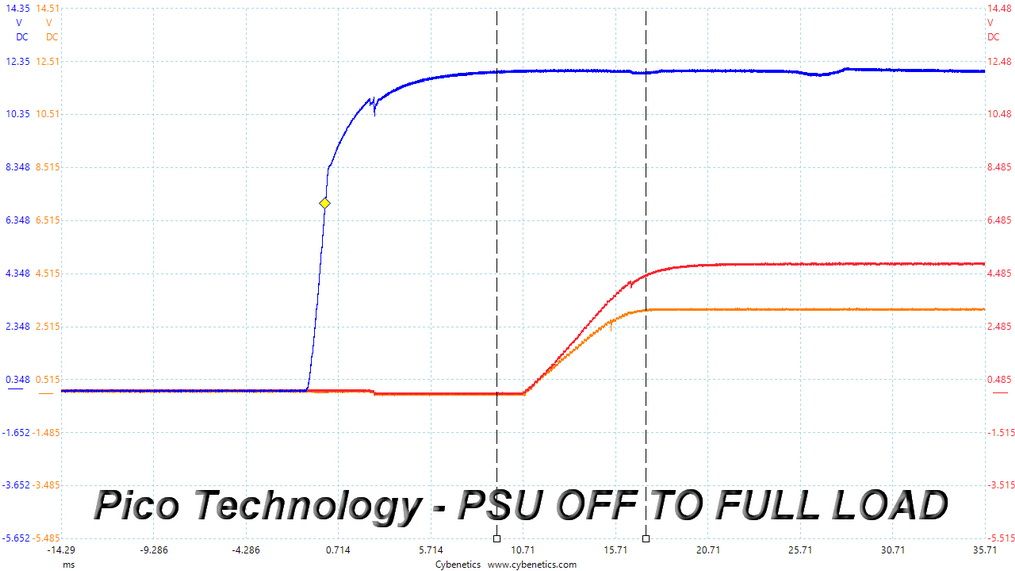

No problems here since the 3.3V rail is always lower than the other two. The minor rails need some time, though, to start rising to the nominal voltage levels.
Cross Load Tests
To generate the following charts, we set our loaders to auto mode through custom-made software before trying more than 25,000 possible load combinations with the +12V, 5V, and 3.3V rails. The deviations in each of the charts below are calculated by taking the nominal values of the rails (12V, 5V, and 3.3V) as point zero. The ambient temperature during testing was between 30 to 32 degrees Celsius (86 to 89.6 degrees Fahrenheit).
Get Tom's Hardware's best news and in-depth reviews, straight to your inbox.

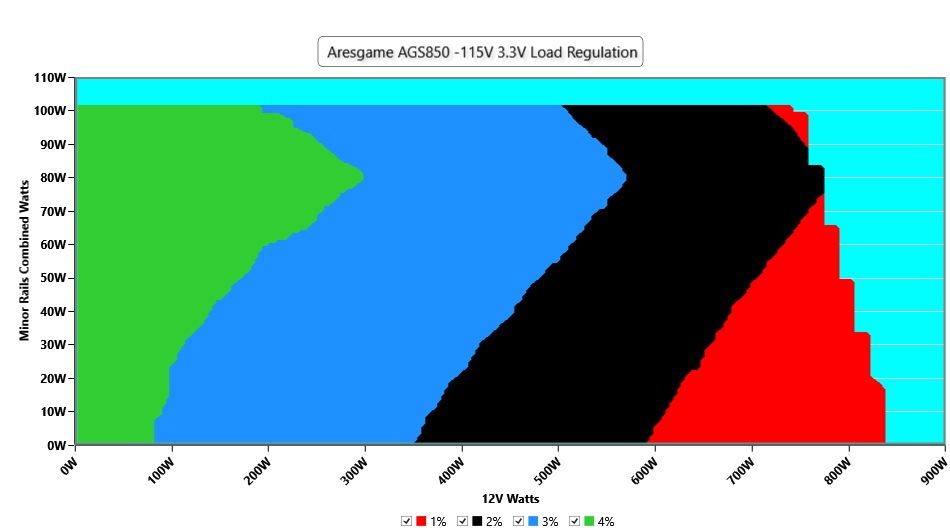

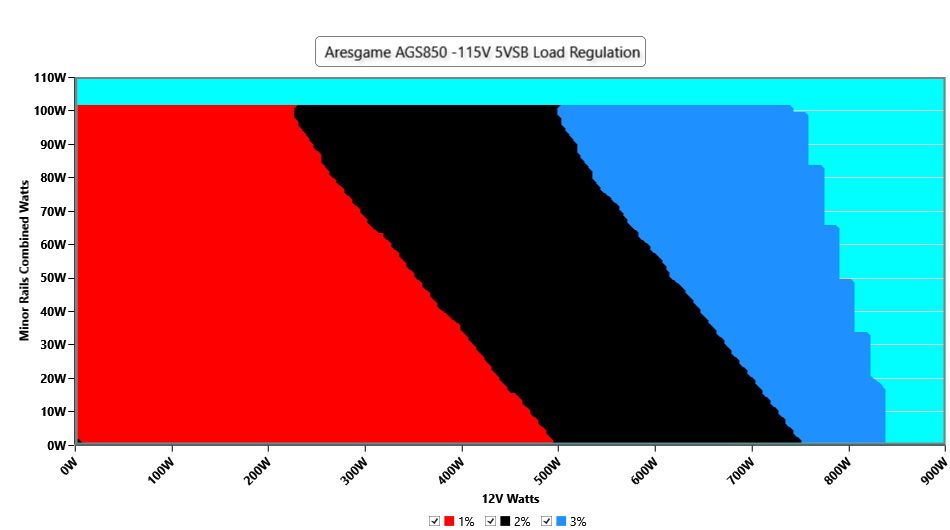

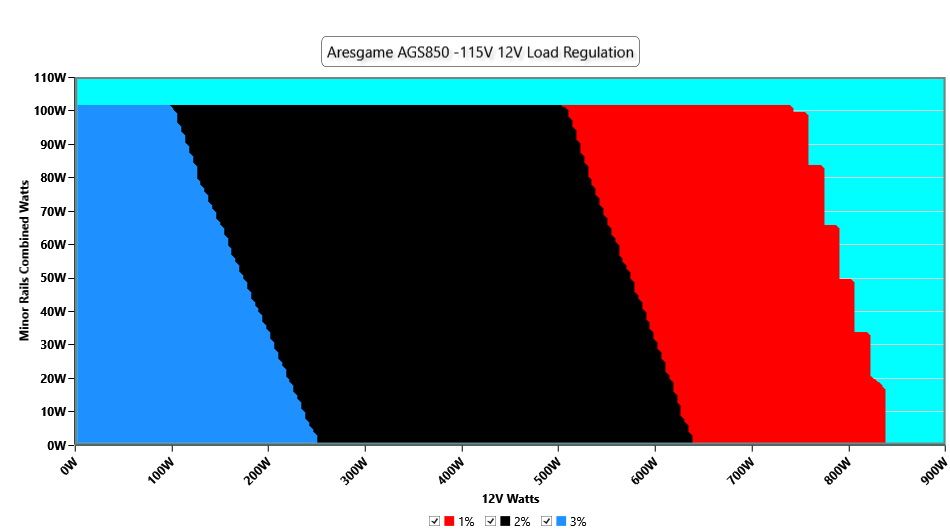

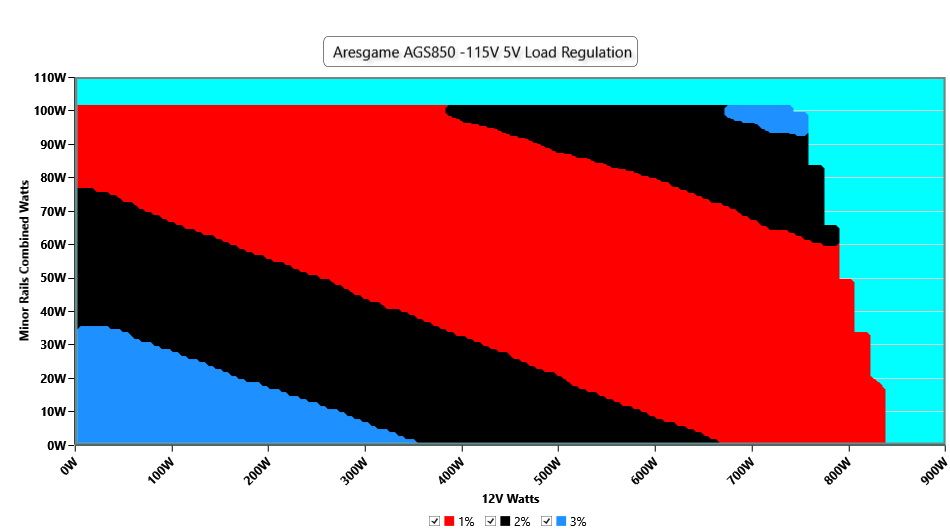

Load Regulation Charts
View Original
View Original
View Original
View Original
Efficiency Graph

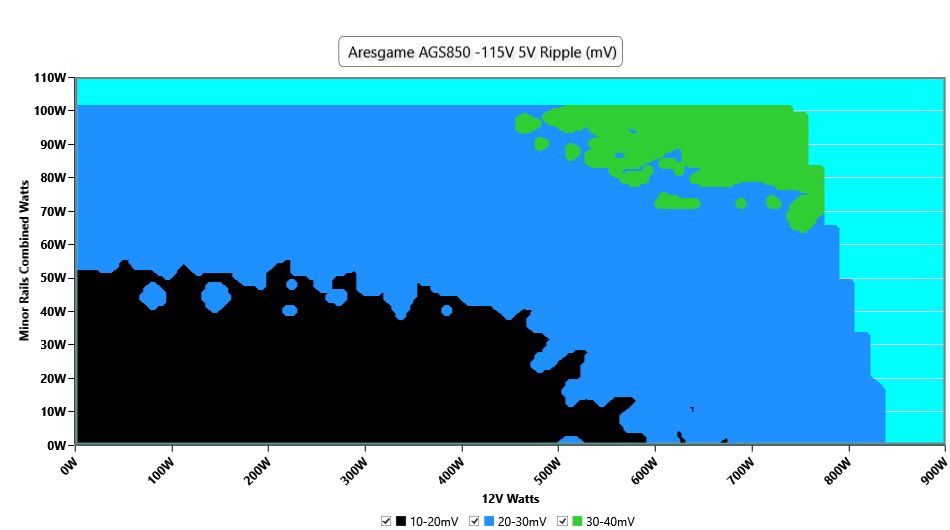

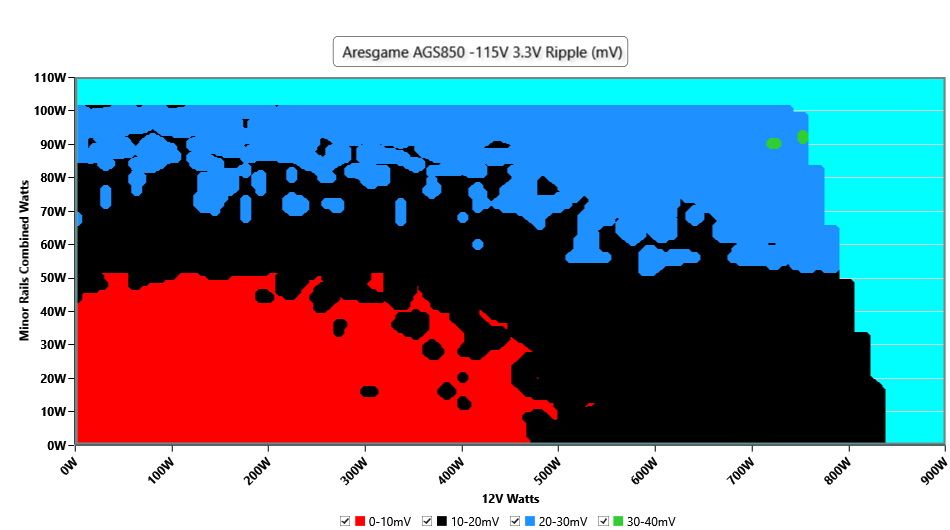

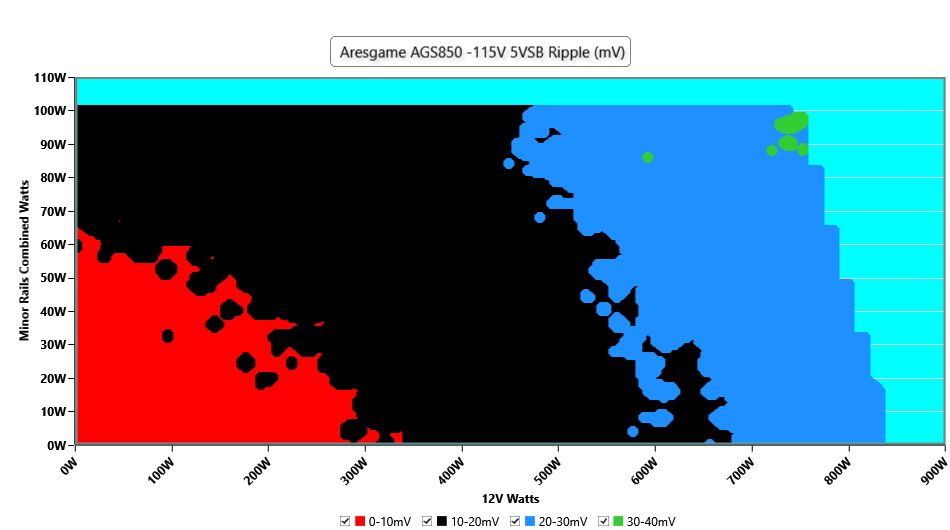

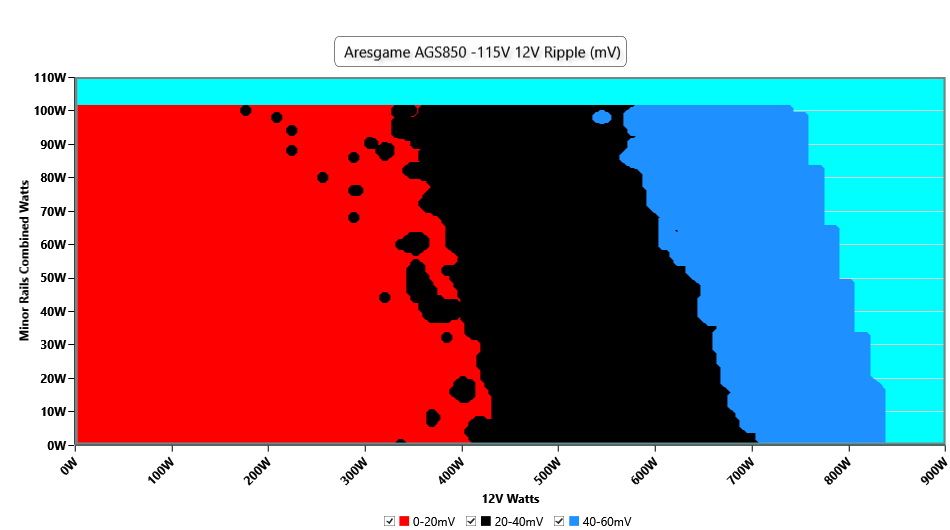

Ripple Graphs
The lower the power supply's ripple, the more stable the system will be and less stress will also be applied to its components.
View Original
View Original
View Original
View Original
Infrared Images

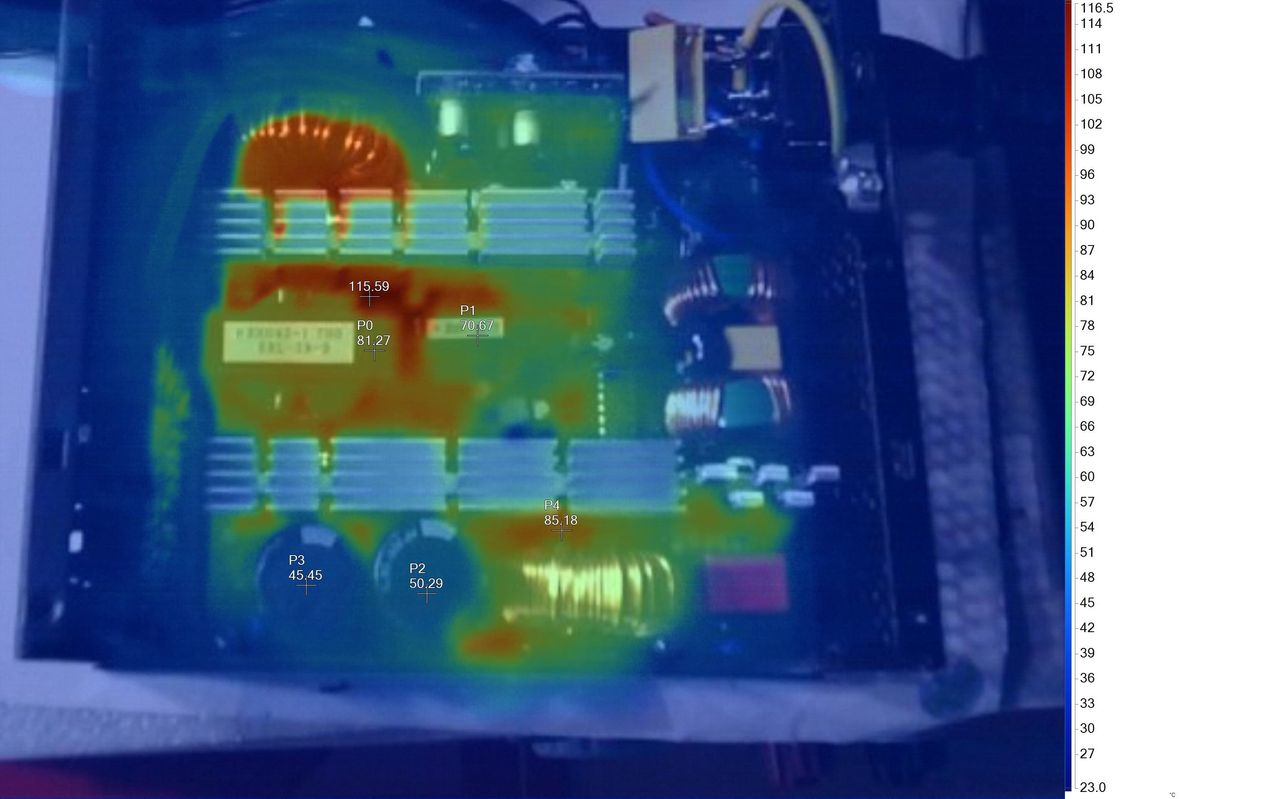

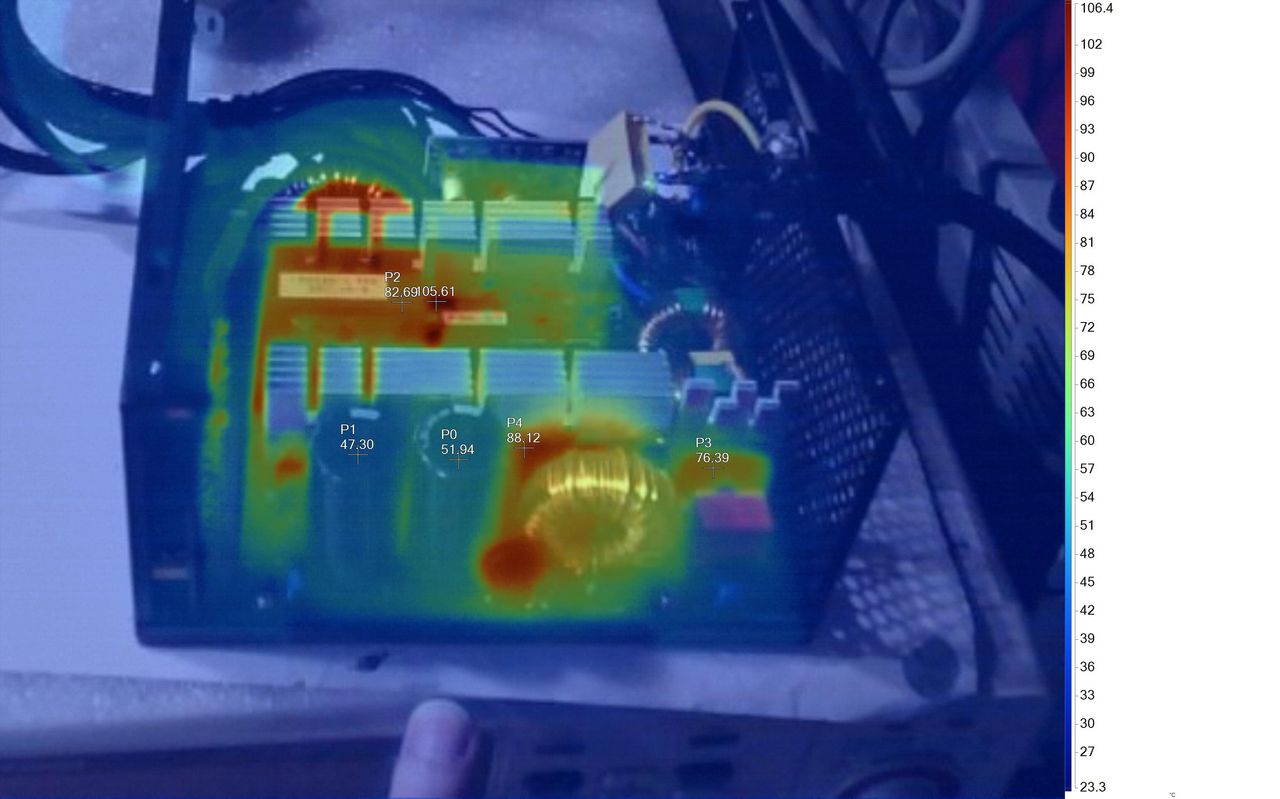

We apply a half-load for 10 minutes with the PSU's top cover and cooling fan removed before taking photos with a modified Fluke Ti480 PRO camera able to deliver an IR resolution of 640x480 (307,200 pixels).
View Original
View Original
View Original
View Original
The temperatures are increased, especially on the secondary heatsink. The platform has a hard time with no active cooling.
