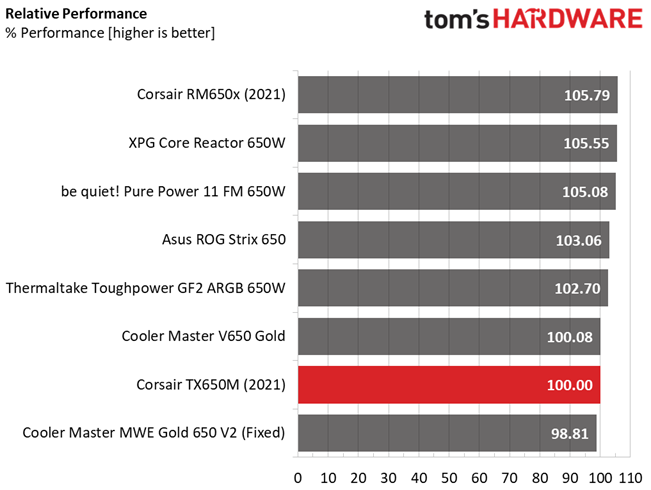

Performance Rating
With lower than 30mV ripple at 12V at full load, and better transient response, the average performance would be notably boosted.
Noise Rating

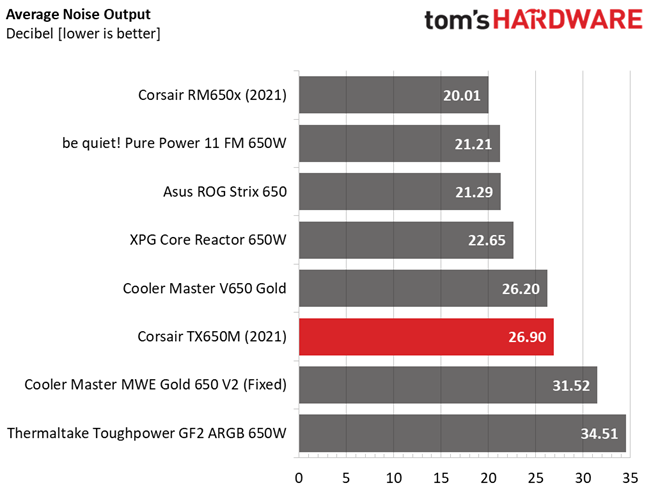

The graph below depicts the cooling fan's average noise over the PSU's operating range, with an ambient temperature between 30 to 32 degrees Celsius (86 to 89.6 degrees Fahrenheit).
The average noise output is low. Not as low as the 2021 model of the RM650x, but still low enough to satisfy most users.
Efficiency Rating

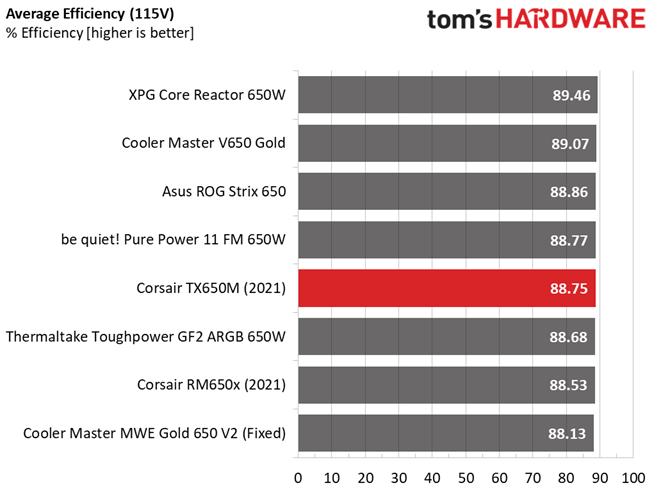

The following graph shows the PSU's average efficiency throughout its operating range with an ambient temperature close to 30 degrees Celsius.
The average efficiency is in the middle of the pack, so satisfactory.
Power Factor Rating

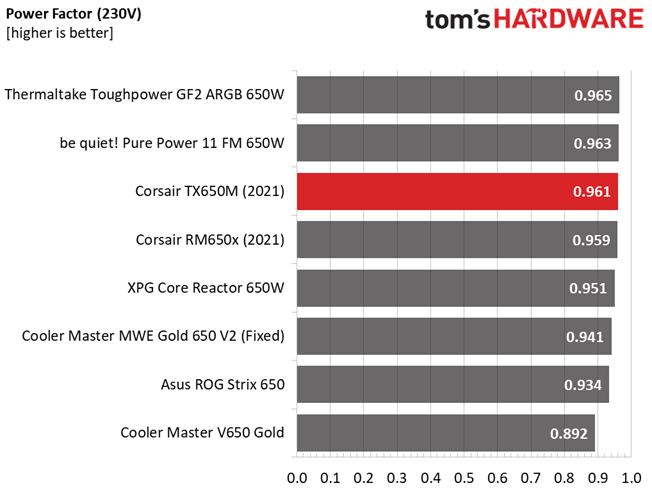

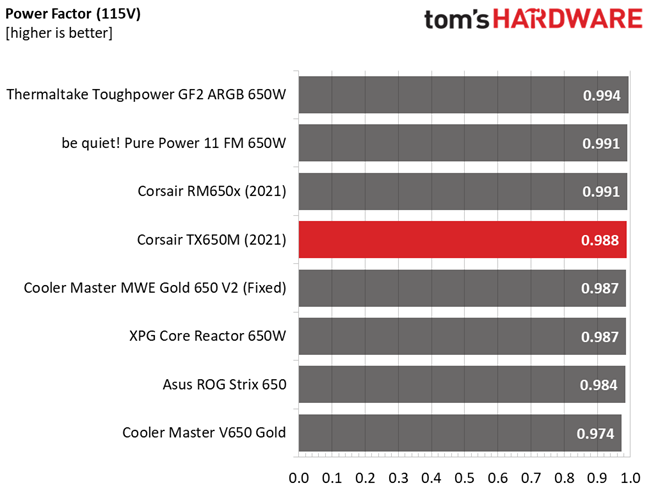

The following graphs show the PSU's average power factor reading throughout its operating range with an ambient temperature close to 30 degrees Celsius and 115V/230V voltage input.
The APFC converter achieves good performance.
MORE: Best Power Supplies
MORE: How We Test Power Supplies
MORE: All Power Supply Content
Current page: Performance, Noise, Efficiency and Power Factor
Prev Page Transient Response Tests, Timing Tests, Ripple Measurements and EMC Pre-Compliance Testing Next Page Bottom LineAris Mpitziopoulos is a contributing editor at Tom's Hardware, covering PSUs.
